KA37減速機重量：KA37減速機重量10公斤，KA37減速機與電機重量分別如下

KA37減速機與0.12KW電機重量15.5公斤，KA37減速機與0.18KW電機重量16公斤，KA37減速機與0.25KW電機重量20公斤，KA37減速機與0.37KW電機重量20.5公斤，KA37減速機與0.55KW電機重量25公斤，KA37減速機與0.75KW電機重量26公斤，KA37減速機與1.1KW電機重量30公斤，KA37減速機與1.5KW電機重量33公斤，KA37減速機與2.2KW電機重量42公斤，KA37減速機與3KW電機重量45公斤。

KA37減速機加油量：可加齒輪油直角減速機

KA37減速機M3方式安裝加1L，KA37減速機M2方式安裝加1L，KA37減速機M1方式安裝加0.5L，KA37減速機M4方式安裝加1.4L，KA37減速機M5方式安裝加1L，KA37減速機M6方式安裝加1L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1- M6的減速機相應的標準參考潤滑油注入量值。

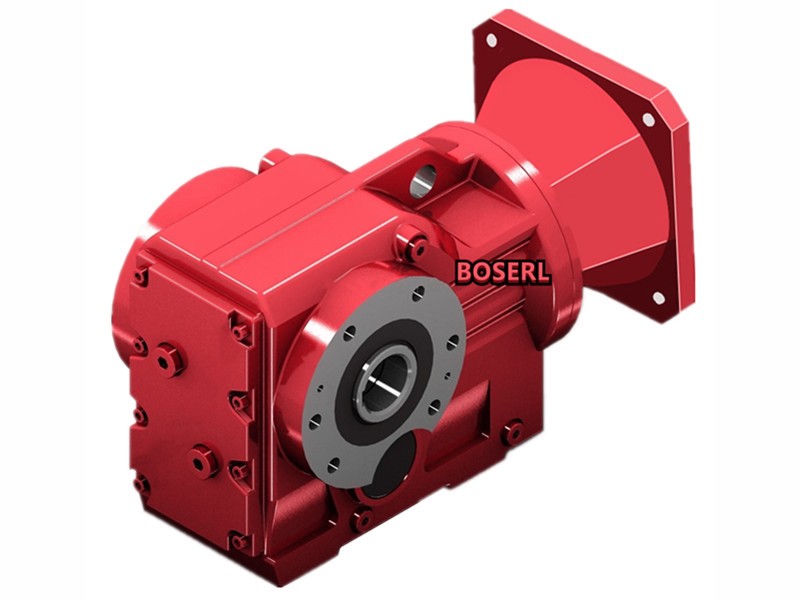

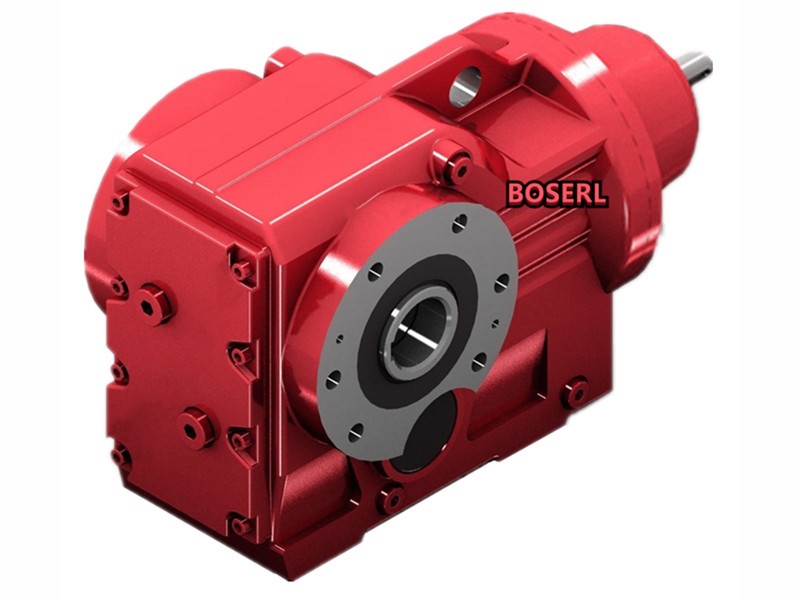

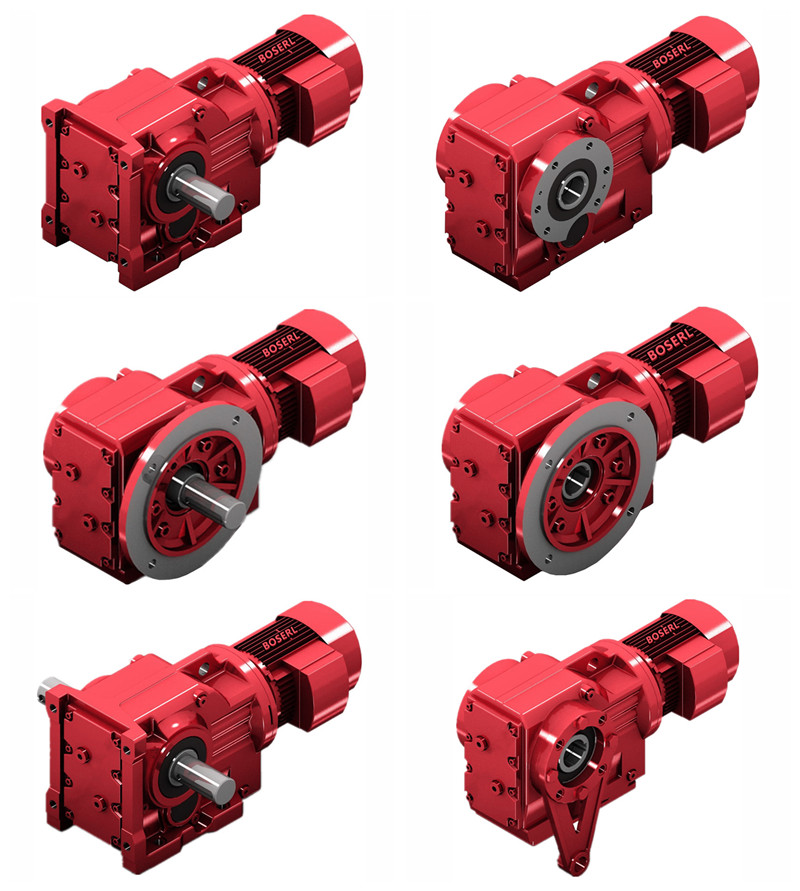

KA37減速機實物圖：圖一為KA37臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K37臥式方式安裝螺旋錐齒輪減速電機，圖三為KF37立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF37立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA37減速機型號表示方法：

KA37減速機型號結構KA37-B1.1KW-4P-減速比-安裝方式-接線盒位置。

KA37減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA37，K37，KF37，KAF37減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。

KA37減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看。可提供R(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KA37減速機參數：

KA37減速機減速比106.38比，97.81比，83.69比，72.54比，67.80比，58.60比，49.79比，44.46比，37.97比，35.57比，29.96比，28.83比，24.99比，23.36比，20.19比，17.15比，15.31比，13.08比，12.14比，10.49比，8.91比，7.96比，6.8比，6.37比，5.36比，3.98比

KA37減速機輸出轉數13轉，14轉，17轉，19轉，21轉，24轉，28轉，31轉，37轉，39轉，47轉，49轉，56轉，60轉，69轉，82轉，91轉，107轉，115轉，133轉，157轉，176轉，206轉，220轉，261轉，352轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KA37減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA37與0.12KW，KA37與0.18KW，KA37與0.25KW，KA37與0.37KW，KA37與0.55KW，KA37與0.75KW，KA37與1.1KW，KA37與1.5KW，KA37與2.2KW，KA37與3KW。

KA37減速機輸出扭矩200N.m，195N.m，185N.m，180N.m，175N.m，165N.m，160N.m，155N.m，150N.m，145N.m，140N.m，125N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

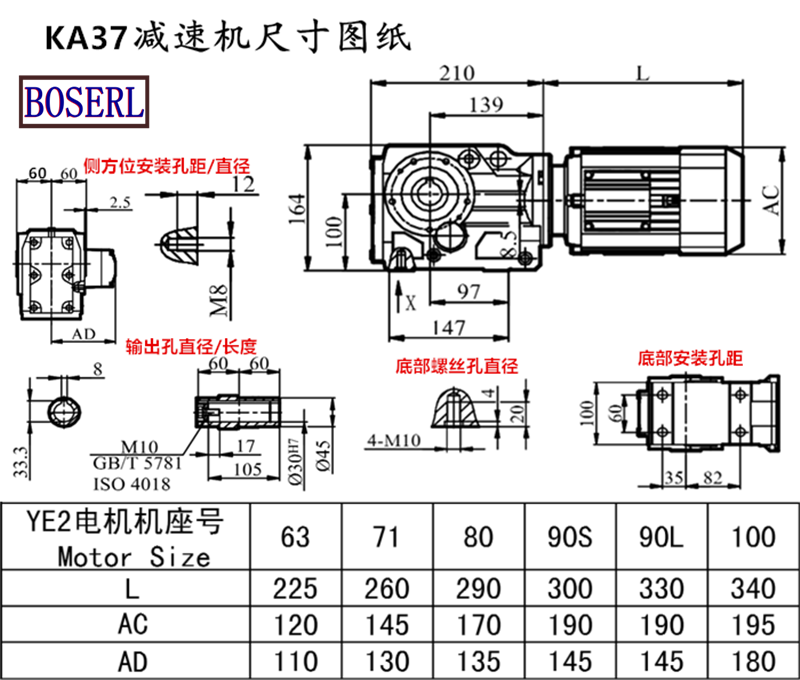

KA37減速機安裝尺寸：高164*寬120*長210

KA37減速機型號：KA37AQA80,KA37AQA100,KA37AQA115,KA37AQA140,KA37AQA160,KA37AQA190,KA37AQH80,KA37AQH100,KA37AQH115,KA37AQH140,KA37AQH160,KA37AQH190,JRTKA37-Y0.12KW,JRTKA37-Y0.18KW,JRTKA37-Y0.25KW,JRTKA37-Y0.A37KW,JRTKA37-Y0.55KW,JRTKA37-Y0.75KW,JRTKA37-Y1.1KW,JRTKA37-Y1.5KW,JRTKA37-Y100M4,JRTKA37-Y2.2KW,JRTKA37-Y3KW,JRTKA37-Y63M4,JRTKA37-Y71M4,JRTKA37-Y80M4,JRTKA37-Y90M4,JRTKA37-YEJ100M4,JRTKA37-YEJ63M4,JRTKA37-YEJ71M4,JRTKA37-YEJ80M4,JRTKA37-YEJ90M4,JRTKA37-YS100M4,JRTKA37-YS63M4,JRTKA37-YS71M4,JRTKA37-YS80M4,JRTKA37-YS90M4,JRTKA37-YVP100M4,JRTKA37-YVP63M4,JRTKA37-YVP71M4,JRTKA37-YVP80M4,JRTKA37-YVP90M4,JRTKA37-YVPEJ100M4,JRTKA37-YVPEJ63M4,JRTKA37-YVPEJ71M4,JRTKA37-YVPEJ80M4,JRTKA37-YVPEJ90M4,EWKA37-Y0.12KW,EWKA37-Y0.18KW,EWKA37-Y0.25KW,EWKA37-Y0.A37KW,EWKA37-Y0.55KW,EWKA37-Y0.75KW,EWKA37-Y1.1KW,EWKA37-Y1.5KW,EWKA37-Y100M4,EWKA37-Y2.2KW,EWKA37-Y3KW,EWKA37-Y63M4,EWKA37-Y71M4,EWKA37-Y80M4,EWKA37-Y90M4,EWKA37-YEJ100M4,EWKA37-YEJ63M4,EWKA37-YEJ71M4,EWKA37-YEJ80M4,EWKA37-YEJ90M4,EWKA37-YS100M4,EWKA37-YS63M4,EWKA37-YS71M4,EWKA37-YS80M4,EWKA37-YS90M4,EWKA37-YVP100M4,EWKA37-YVP63M4,EWKA37-YVP71M4,EWKA37-YVP80M4,EWKA37-YVP90M4,EWKA37-YVPEJ100M4,EWKA37-YVPEJ63M4,EWKA37-YVPEJ71M4,EWKA37-YVPEJ80M4,EWKA37-YVPEJ90M4,SLKA37-Y0.12KW,SLKA37-Y0.18KW,SLKA37-Y0.25KW,SLKA37-Y0.A37KW,SLKA37-Y0.55KW,SLKA37-Y0.75KW,SLKA37-Y1.1KW,SLKA37-Y1.5KW,SLKA37-Y100M4,SLKA37-Y2.2KW,SLKA37-Y3KW,SLKA37-Y63M4,SLKA37-Y71M4,SLKA37-Y80M4,SLKA37-Y90M4,SLKA37-YEJ100M4,SLKA37-YEJ63M4,SLKA37-YEJ71M4,SLKA37-YEJ80M4,SLKA37-YEJ90M4,SLKA37-YS100M4,SLKA37-YS63M4,SLKA37-YS71M4,SLKA37-YS80M4,SLKA37-YS90M4,SLKA37-YVP100M4,SLKA37-YVP63M4,SLKA37-YVP71M4,SLKA37-YVP80M4,SLKA37-YVP90M4,SLKA37-YVPEJ100M4,SLKA37-YVPEJ63M4,SLKA37-YVPEJ71M4,SLKA37-YVPEJ80M4,SLKA37-YVPEJ90M4,DSZKA37-Y0.12KW,DSZKA37-Y0.18KW,DSZKA37-Y0.25KW,DSZKA37-Y0.A37KW,DSZKA37-Y0.55KW,DSZKA37-Y0.75KW,DSZKA37-Y1.1KW,DSZKA37-Y1.5KW,DSZKA37-Y100M4,DSZKA37-Y2.2KW,DSZKA37-Y3KW,DSZKA37-Y63M4,DSZKA37-Y71M4,DSZKA37-Y80M4,DSZKA37-Y90M4,DSZKA37-YEJ100M4,DSZKA37-YEJ63M4,DSZKA37-YEJ71M4,DSZKA37-YEJ80M4,DSZKA37-YEJ90M4,DSZKA37-YS100M4,DSZKA37-YS63M4,DSZKA37-YS71M4,DSZKA37-YS80M4,DSZKA37-YS90M4,DSZKA37-YVP100M4,DSZKA37-YVP63M4,DSZKA37-YVP71M4,DSZKA37-YVP80M4,DSZKA37-YVP90M4,DSZKA37-YVPEJ100M4,DSZKA37-YVPEJ63M4,DSZKA37-YVPEJ71M4,DSZKA37-YVPEJ80M4,DSZKA37-YVPEJ90M4,BKA37-Y0.12KW,BKA37-Y0.18KW,BKA37-Y0.25KW,BKA37-Y0.A37KW,BKA37-Y0.55KW,BKA37-Y0.75KW,BKA37-Y1.1KW,BKA37-Y1.5KW,BKA37-Y100M4,BKA37-Y2.2KW,BKA37-Y3KW,BKA37-Y63M4,BKA37-Y71M4,BKA37-Y80M4,BKA37-Y90M4,BKA37-YEJ100M4,BKA37-YEJ63M4,BKA37-YEJ71M4,BKA37-YEJ80M4,BKA37-YEJ90M4,BKA37-YS100M4,BKA37-YS63M4,BKA37-YS71M4,BKA37-YS80M4,BKA37-YS90M4,BKA37-YVP100M4,BKA37-YVP63M4,BKA37-YVP71M4,BKA37-YVP80M4,BKA37-YVP90M4,BKA37-YVPEJ100M4,BKA37-YVPEJ63M4,BKA37-YVPEJ71M4,BKA37-YVPEJ80M4,BKA37-YVPEJ90M4,GKA37-Y0.12KW,GKA37-Y0.18KW,GKA37-Y0.25KW,GKA37-Y0.A37KW,GKA37-Y0.55KW,GKA37-Y0.75KW,GKA37-Y1.1KW,GKA37-Y1.5KW,GKA37-Y100M4,GKA37-Y2.2KW,GKA37-Y3KW,GKA37-Y63M4,GKA37-Y71M4,GKA37-Y80M4,GKA37-Y90M4,GKA37-YEJ100M4,GKA37-YEJ63M4,GKA37-YEJ71M4,GKA37-YEJ80M4,GKA37-YEJ90M4,GKA37-YS100M4,GKA37-YS63M4,GKA37-YS71M4,GKA37-YS80M4,GKA37-YS90M4,GKA37-YVP100M4,GKA37-YVP63M4,GKA37-YVP71M4,GKA37-YVP80M4,GKA37-YVP90M4,GKA37-YVPEJ100M4,GKA37-YVPEJ63M4,GKA37-YVPEJ71M4,GKA37-YVPEJ80M4,GKA37-YVPEJ90M4,KCA37-Y0.12KW,KCA37-Y0.18KW,KCA37-Y0.25KW,KCA37-Y0.A37KW,KCA37-Y0.55KW,KCA37-Y0.75KW,KCA37-Y1.1KW,KCA37-Y1.5KW,KCA37-Y100M4,KCA37-Y2.2KW,KCA37-Y3KW,KCA37-Y63M4,KCA37-Y71M4,KCA37-Y80M4,KCA37-Y90M4,KCA37-YEJ100M4,KCA37-YEJ63M4,KCA37-YEJ71M4,KCA37-YEJ80M4,KCA37-YEJ90M4,KCA37-YS100M4,KCA37-YS63M4,KCA37-YS71M4,KCA37-YS80M4,KCA37-YS90M4,KCA37-YVP100M4,KCA37-YVP63M4,KCA37-YVP71M4,KCA37-YVP80M4,KCA37-YVP90M4,KCA37-YVPEJ100M4,KCA37-YVPEJ63M4,KCA37-YVPEJ71M4,KCA37-YVPEJ80M4,KCA37-YVPEJ90M4,MTJA37-Y0.12KW,MTJA37-Y0.18KW,MTJA37-Y0.25KW,MTJA37-Y0.A37KW,MTJA37-Y0.55KW,MTJA37-Y0.75KW,MTJA37-Y1.1KW,MTJA37-Y1.5KW,MTJA37-Y100M4,MTJA37-Y2.2KW,MTJA37-Y3KW,MTJA37-Y63M4,MTJA37-Y71M4,MTJA37-Y80M4,MTJA37-Y90M4,MTJA37-YEJ100M4,MTJA37-YEJ63M4,MTJA37-YEJ71M4,MTJA37-YEJ80M4,MTJA37-YEJ90M4,MTJA37-YS100M4,MTJA37-YS63M4,MTJA37-YS71M4,MTJA37-YS80M4,MTJA37-YS90M4,MTJA37-YVP100M4,MTJA37-YVP63M4,MTJA37-YVP71M4,MTJA37-YVP80M4,MTJA37-YVP90M4,MTJA37-YVPEJ100M4,MTJA37-YVPEJ63M4,MTJA37-YVPEJ71M4,MTJA37-YVPEJ80M4,MTJA37-YVPEJ90M4,WXKA37-WSS0.12KW,WXKA37-WSS0.18KW,WXKA37-WSS0.25KW,WXKA37-WSS0.A37KW,WXKA37-WSS0.55KW,WXKA37-WSS0.75KW,WXKA37-WSS1.1KW,WXKA37-WSS1.5KW,WXKA37-WSS100M4,WXKA37-WSS2.2KW,WXKA37-WSS3KW,WXKA37-WSS63M4,WXKA37-WSS71M4,WXKA37-WSS80M4,WXKA37-WSS90M4,WXKA37-WSSB100M4,WXKA37-WSSB63M4,WXKA37-WSSB71M4,WXKA37-WSSB80M4,WXKA37-WSSB90M4,WXKA37-WSSVP100M4,WXKA37-WSSVP63M4,WXKA37-WSSVP71M4,WXKA37-WSSVP80M4,WXKA37-WSSVP90M4,WXKA37-WSSVPB100M4,WXKA37-WSSVPB63M4,WXKA37-WSSVPB71M4,WXKA37-WSSVPB80M4,WXKA37-WSSVPB90M4。空心軸減速機
