KA157減速機重量：KA157減速機重量609公斤，KA157減速機與電機重量分別如下

KA157減速機與11KW電機重量724公斤，KA157減速機與15KW電機重量743公斤，KA157減速機與18.5KW電機重量781公斤，KA157減速機與22KW電機重量794公斤，KA157減速機與30KW電機重量862公斤，KA157減速機與37KW電機重量909公斤，KA157減速機與45KW電機重量944公斤，KA157減速機與55KW電機重量1029公斤，KA157減速機與75KW電機重量1169公斤，KA157減速機與90KW電機重量1279公斤，KA157減速機與110KW電機重量1529公斤，KA157減速機與132KW電機重量1659公斤，KA157減速機與160KW電機重量1769公斤，KA157減速機與200KW電機重量1849公斤。

KA157減速機加油量：可加齒輪油空心軸減速機

KA157減速機M3方式安裝加67L，KA157減速機M2方式安裝加66L，KA157減速機M1方式安裝加31L，KA157減速機M4方式安裝加87L，KA157減速機M5方式安裝加62L，KA157減速機M6方式安裝加62L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

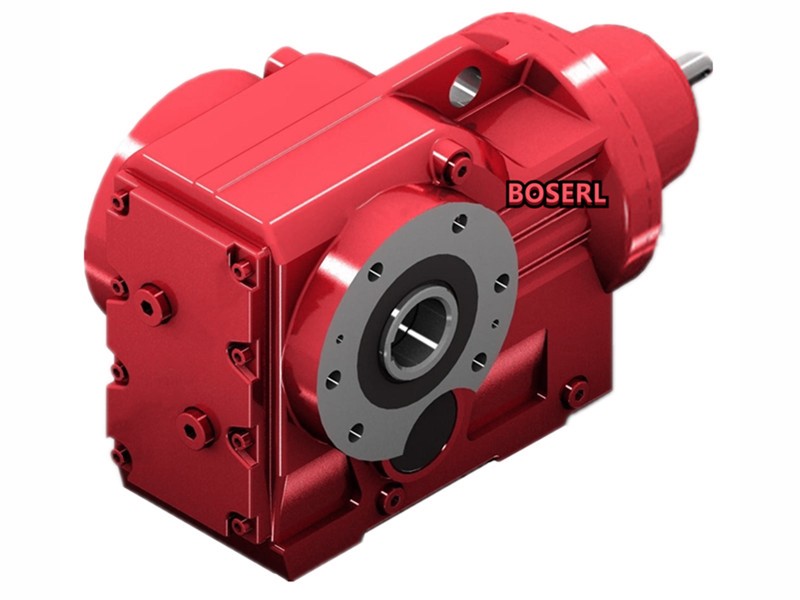

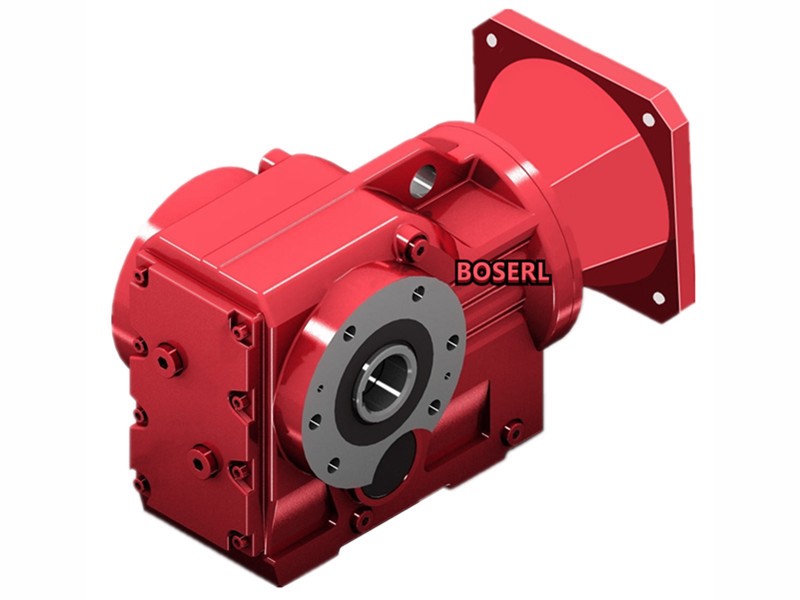

KA157減速機實物圖：圖一為KA157臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K157臥式方式安裝螺旋錐齒輪減速電機，圖三為KF157立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF157立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA157減速機型號表示方法：

KA157減速機型號結構KA157-B132KW-4P-減速比-方式安裝-接線盒位置。

KA157減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA157，K157，KF157，KAF157減速機機座號，N代表徑向負荷，HR手動釋放裝置，1，min代表輸出轉數，HF手動釋放裝置與自鎖功能。

KA157減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。直角減速機

KA157減速機參數：

KA157減速機減速比：150.41比，122.39比，100.22比，91.65比，79.75比，70.38比，61.02比，54.29比，46.79比，38.02比，31.3比，27.62比，23.95比，21.31比，18.37比，14.92比，12.65比

KA157減速機輸出轉數9.3轉，11轉，14轉，15轉，18轉，20轉，23轉，26轉，30轉，37轉，45轉，51轉，58轉，66轉，76轉，94轉，111轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KA157減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA157與11KW，KA157與15KW，KA157與18.5KW，KA157與22KW，KA157與30KW，KA157與37KW，KA157與45KW，KA157與55KW，KA157與75KW，KA157與90KW，KA157與110KW，KA157與132KW，KA157與160KW，KA157與200KW。

KA157減速機輸出扭矩18000N.m，17000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

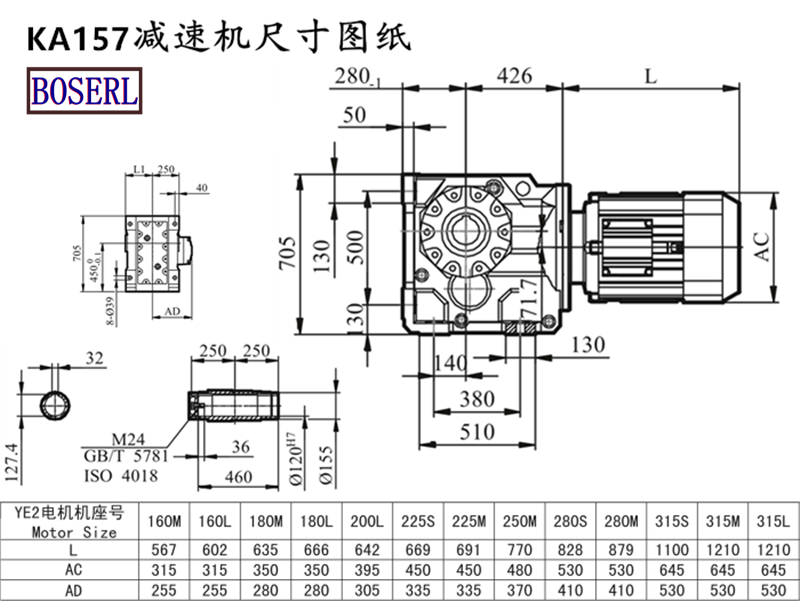

KA157減速機安裝尺寸：高705*寬500*長706

KA157減速機型號：KA157AQA80,KA157AQA100,KA157AQA115,KA157AQA140,KA157AQA160,KA157AQA190,KA157AQH80,KA157AQH100,KA157AQH115,KA157AQH140,KA157AQH160,KA157AQH190,JRTKA157-Y110KW,JRTKA157-Y11KW,JRTKA157-Y132KW,JRTKA157-Y15KW,JRTKA157-Y160KW,JRTKA157-Y160M4,JRTKA157-Y18.5KW,JRTKA157-Y180M4,JRTKA157-Y200KW,JRTKA157-Y200M4,JRTKA157-Y225M4,JRTKA157-Y22KW,JRTKA157-Y250M4,JRTKA157-Y280M4,JRTKA157-Y30KW,JRTKA157-Y315M4,JRTKA157-Y37KW,JRTKA157-Y45KW,JRTKA157-Y55KW,JRTKA157-Y75KW,JRTKA157-Y90KW,JRTKA157-YEJ160M4,JRTKA157-YEJ180M4,JRTKA157-YEJ200M4,JRTKA157-YEJ225M4,JRTKA157-YEJ250M4,JRTKA157-YEJ280M4,JRTKA157-YEJ315M4,JRTKA157-YS160M4,JRTKA157-YS180M4,JRTKA157-YS200M4,JRTKA157-YS225M4,JRTKA157-YS250M4,JRTKA157-YS280M4,JRTKA157-YS315M4,JRTKA157-YVP160M4,JRTKA157-YVP180M4,JRTKA157-YVP200M4,JRTKA157-YVP225M4,JRTKA157-YVP250M4,JRTKA157-YVP280M4,JRTKA157-YVP315M4,JRTKA157-YVPEJ160M4,JRTKA157-YVPEJ180M4,JRTKA157-YVPEJ200M4,JRTKA157-YVPEJ225M4,JRTKA157-YVPEJ250M4,JRTKA157-YVPEJ280M4,JRTKA157-YVPEJ315M4,EWKA157-Y110KW,EWKA157-Y11KW,EWKA157-Y132KW,EWKA157-Y15KW,EWKA157-Y160KW,EWKA157-Y160M4,EWKA157-Y18.5KW,EWKA157-Y180M4,EWKA157-Y200KW,EWKA157-Y200M4,EWKA157-Y225M4,EWKA157-Y22KW,EWKA157-Y250M4,EWKA157-Y280M4,EWKA157-Y30KW,EWKA157-Y315M4,EWKA157-Y37KW,EWKA157-Y45KW,EWKA157-Y55KW,EWKA157-Y75KW,EWKA157-Y90KW,EWKA157-YEJ160M4,EWKA157-YEJ180M4,EWKA157-YEJ200M4,EWKA157-YEJ225M4,EWKA157-YEJ250M4,EWKA157-YEJ280M4,EWKA157-YEJ315M4,EWKA157-YS160M4,EWKA157-YS180M4,EWKA157-YS200M4,EWKA157-YS225M4,EWKA157-YS250M4,EWKA157-YS280M4,EWKA157-YS315M4,EWKA157-YVP160M4,EWKA157-YVP180M4,EWKA157-YVP200M4,EWKA157-YVP225M4,EWKA157-YVP250M4,EWKA157-YVP280M4,EWKA157-YVP315M4,EWKA157-YVPEJ160M4,EWKA157-YVPEJ180M4,EWKA157-YVPEJ200M4,EWKA157-YVPEJ225M4,EWKA157-YVPEJ250M4,EWKA157-YVPEJ280M4,EWKA157-YVPEJ315M4,SLKA157-Y110KW,SLKA157-Y11KW,SLKA157-Y132KW,SLKA157-Y15KW,SLKA157-Y160KW,SLKA157-Y160M4,SLKA157-Y18.5KW,SLKA157-Y180M4,SLKA157-Y200KW,SLKA157-Y200M4,SLKA157-Y225M4,SLKA157-Y22KW,SLKA157-Y250M4,SLKA157-Y280M4,SLKA157-Y30KW,SLKA157-Y315M4,SLKA157-Y37KW,SLKA157-Y45KW,SLKA157-Y55KW,SLKA157-Y75KW,SLKA157-Y90KW,SLKA157-YEJ160M4,SLKA157-YEJ180M4,SLKA157-YEJ200M4,SLKA157-YEJ225M4,SLKA157-YEJ250M4,SLKA157-YEJ280M4,SLKA157-YEJ315M4,SLKA157-YS160M4,SLKA157-YS180M4,SLKA157-YS200M4,SLKA157-YS225M4,SLKA157-YS250M4,SLKA157-YS280M4,SLKA157-YS315M4,SLKA157-YVP160M4,SLKA157-YVP180M4,SLKA157-YVP200M4,SLKA157-YVP225M4,SLKA157-YVP250M4,SLKA157-YVP280M4,SLKA157-YVP315M4,SLKA157-YVPEJ160M4,SLKA157-YVPEJ180M4,SLKA157-YVPEJ200M4,SLKA157-YVPEJ225M4,SLKA157-YVPEJ250M4,SLKA157-YVPEJ280M4,SLKA157-YVPEJ315M4,DSZKA157-Y110KW,DSZKA157-Y11KW,DSZKA157-Y132KW,DSZKA157-Y15KW,DSZKA157-Y160KW,DSZKA157-Y160M4,DSZKA157-Y18.5KW,DSZKA157-Y180M4,DSZKA157-Y200KW,DSZKA157-Y200M4,DSZKA157-Y225M4,DSZKA157-Y22KW,DSZKA157-Y250M4,DSZKA157-Y280M4,DSZKA157-Y30KW,DSZKA157-Y315M4,DSZKA157-Y37KW,DSZKA157-Y45KW,DSZKA157-Y55KW,DSZKA157-Y75KW,DSZKA157-Y90KW,DSZKA157-YEJ160M4,DSZKA157-YEJ180M4,DSZKA157-YEJ200M4,DSZKA157-YEJ225M4,DSZKA157-YEJ250M4,DSZKA157-YEJ280M4,DSZKA157-YEJ315M4,DSZKA157-YS160M4,DSZKA157-YS180M4,DSZKA157-YS200M4,DSZKA157-YS225M4,DSZKA157-YS250M4,DSZKA157-YS280M4,DSZKA157-YS315M4,DSZKA157-YVP160M4,DSZKA157-YVP180M4,DSZKA157-YVP200M4,DSZKA157-YVP225M4,DSZKA157-YVP250M4,DSZKA157-YVP280M4,DSZKA157-YVP315M4,DSZKA157-YVPEJ160M4,DSZKA157-YVPEJ180M4,DSZKA157-YVPEJ200M4,DSZKA157-YVPEJ225M4,DSZKA157-YVPEJ250M4,DSZKA157-YVPEJ280M4,DSZKA157-YVPEJ315M4,BKA157-Y110KW,BKA157-Y11KW,BKA157-Y132KW,BKA157-Y15KW,BKA157-Y160KW,BKA157-Y160M4,BKA157-Y18.5KW,BKA157-Y180M4,BKA157-Y200KW,BKA157-Y200M4,BKA157-Y225M4,BKA157-Y22KW,BKA157-Y250M4,BKA157-Y280M4,BKA157-Y30KW,BKA157-Y315M4,BKA157-Y37KW,BKA157-Y45KW,BKA157-Y55KW,BKA157-Y75KW,BKA157-Y90KW,BKA157-YEJ160M4,BKA157-YEJ180M4,BKA157-YEJ200M4,BKA157-YEJ225M4,BKA157-YEJ250M4,BKA157-YEJ280M4,BKA157-YEJ315M4,BKA157-YS160M4,BKA157-YS180M4,BKA157-YS200M4,BKA157-YS225M4,BKA157-YS250M4,BKA157-YS280M4,BKA157-YS315M4,BKA157-YVP160M4,BKA157-YVP180M4,BKA157-YVP200M4,BKA157-YVP225M4,BKA157-YVP250M4,BKA157-YVP280M4,BKA157-YVP315M4,BKA157-YVPEJ160M4,BKA157-YVPEJ180M4,BKA157-YVPEJ200M4,BKA157-YVPEJ225M4,BKA157-YVPEJ250M4,BKA157-YVPEJ280M4,BKA157-YVPEJ315M4,GKA157-Y110KW,GKA157-Y11KW,GKA157-Y132KW,GKA157-Y15KW,GKA157-Y160KW,GKA157-Y160M4,GKA157-Y18.5KW,GKA157-Y180M4,GKA157-Y200KW,GKA157-Y200M4,GKA157-Y225M4,GKA157-Y22KW,GKA157-Y250M4,GKA157-Y280M4,GKA157-Y30KW,GKA157-Y315M4,GKA157-Y37KW,GKA157-Y45KW,GKA157-Y55KW,GKA157-Y75KW,GKA157-Y90KW,GKA157-YEJ160M4,GKA157-YEJ180M4,GKA157-YEJ200M4,GKA157-YEJ225M4,GKA157-YEJ250M4,GKA157-YEJ280M4,GKA157-YEJ315M4,GKA157-YS160M4,GKA157-YS180M4,GKA157-YS200M4,GKA157-YS225M4,GKA157-YS250M4,GKA157-YS280M4,GKA157-YS315M4,GKA157-YVP160M4,GKA157-YVP180M4,GKA157-YVP200M4,GKA157-YVP225M4,GKA157-YVP250M4,GKA157-YVP280M4,GKA157-YVP315M4,GKA157-YVPEJ160M4,GKA157-YVPEJ180M4,GKA157-YVPEJ200M4,GKA157-YVPEJ225M4,GKA157-YVPEJ250M4,GKA157-YVPEJ280M4,GKA157-YVPEJ315M4,KCA157-Y110KW,KCA157-Y11KW,KCA157-Y132KW,KCA157-Y15KW,KCA157-Y160KW,KCA157-Y160M4,KCA157-Y18.5KW,KCA157-Y180M4,KCA157-Y200KW,KCA157-Y200M4,KCA157-Y225M4,KCA157-Y22KW,KCA157-Y250M4,KCA157-Y280M4,KCA157-Y30KW,KCA157-Y315M4,KCA157-Y37KW,KCA157-Y45KW,KCA157-Y55KW,KCA157-Y75KW,KCA157-Y90KW,KCA157-YEJ160M4,KCA157-YEJ180M4,KCA157-YEJ200M4,KCA157-YEJ225M4,KCA157-YEJ250M4,KCA157-YEJ280M4,KCA157-YEJ315M4,KCA157-YS160M4,KCA157-YS180M4,KCA157-YS200M4,KCA157-YS225M4,KCA157-YS250M4,KCA157-YS280M4,KCA157-YS315M4,KCA157-YVP160M4,KCA157-YVP180M4,KCA157-YVP200M4,KCA157-YVP225M4,KCA157-YVP250M4,KCA157-YVP280M4,KCA157-YVP315M4,KCA157-YVPEJ160M4,KCA157-YVPEJ180M4,KCA157-YVPEJ200M4,KCA157-YVPEJ225M4,KCA157-YVPEJ250M4,KCA157-YVPEJ280M4,KCA157-YVPEJ315M4,MTJA157-Y110KW,MTJA157-Y11KW,MTJA157-Y132KW,MTJA157-Y15KW,MTJA157-Y160KW,MTJA157-Y160M4,MTJA157-Y18.5KW,MTJA157-Y180M4,MTJA157-Y200KW,MTJA157-Y200M4,MTJA157-Y225M4,MTJA157-Y22KW,MTJA157-Y250M4,MTJA157-Y280M4,MTJA157-Y30KW,MTJA157-Y315M4,MTJA157-Y37KW,MTJA157-Y45KW,MTJA157-Y55KW,MTJA157-Y75KW,MTJA157-Y90KW,MTJA157-YEJ160M4,MTJA157-YEJ180M4,MTJA157-YEJ200M4,MTJA157-YEJ225M4,MTJA157-YEJ250M4,MTJA157-YEJ280M4,MTJA157-YEJ315M4,MTJA157-YS160M4,MTJA157-YS180M4,MTJA157-YS200M4,MTJA157-YS225M4,MTJA157-YS250M4,MTJA157-YS280M4,MTJA157-YS315M4,MTJA157-YVP160M4,MTJA157-YVP180M4,MTJA157-YVP200M4,MTJA157-YVP225M4,MTJA157-YVP250M4,MTJA157-YVP280M4,MTJA157-YVP315M4,MTJA157-YVPEJ160M4,MTJA157-YVPEJ180M4,MTJA157-YVPEJ200M4,MTJA157-YVPEJ225M4,MTJA157-YVPEJ250M4,MTJA157-YVPEJ280M4,MTJA157-YVPEJ315M4,WXKA157-WSS110KW,WXKA157-WSS11KW,WXKA157-WSS132KW,WXKA157-WSS15KW,WXKA157-WSS160KW,WXKA157-WSS160M4,WXKA157-WSS18.5KW,WXKA157-WSS180M4,WXKA157-WSS200KW,WXKA157-WSS200M4,WXKA157-WSS225M4,WXKA157-WSS22KW,WXKA157-WSS250M4,WXKA157-WSS280M4,WXKA157-WSS30KW,WXKA157-WSS315M4,WXKA157-WSS37KW,WXKA157-WSS45KW,WXKA157-WSS55KW,WXKA157-WSS75KW,WXKA157-WSS90KW,WXKA157-WSSB160M4,WXKA157-WSSB180M4,WXKA157-WSSB200M4,WXKA157-WSSB225M4,WXKA157-WSSB250M4,WXKA157-WSSB280M4,WXKA157-WSSB315M4,WXKA157-WSSVP160M4,WXKA157-WSSVP180M4,WXKA157-WSSVP200M4,WXKA157-WSSVP225M4,WXKA157-WSSVP250M4,WXKA157-WSSVP280M4,WXKA157-WSSVP315M4,WXKA157-WSSVPB160M4,WXKA157-WSSVPB180M4,WXKA157-WSSVPB200M4,WXKA157-WSSVPB225M4,WXKA157-WSSVPB250M4,WXKA157-WSSVPB280M4,WXKA157-WSSVPB315M4。

KA157減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.sztc800.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K157減速機
