KF107減速機重量：KF107減速機重量252公斤，KF107減速機帶電機重量分別如下

KF107減速機帶3KW電機重量287公斤，KF107減速機帶4KW電機重量298公斤，KF107減速機帶5.5KW電機重量312公斤，KF107減速機帶7.5KW電機重量325公斤，KF107減速機帶11KW電機重量367公斤，KF107減速機帶15KW電機重量387公斤，KF107減速機帶18.5KW電機重量424公斤，KF107減速機帶22KW電機重量437公斤，KF107減速機帶30KW電機重量505公斤，KF107減速機帶37KW電機重量552公斤，KF107減速機帶45KW電機重量587公斤。直角減速機

KF107減速機加油量：可加合成油

KF107減速機M2方式安裝加21.8升，KF107減速機M1方式安裝加10升，KF107減速機M3方式安裝加25.8升，KF107減速機M4方式安裝加35.1升，KF107減速機M5方式安裝加25.2升，KF107減速機M6方式安裝加25.2升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

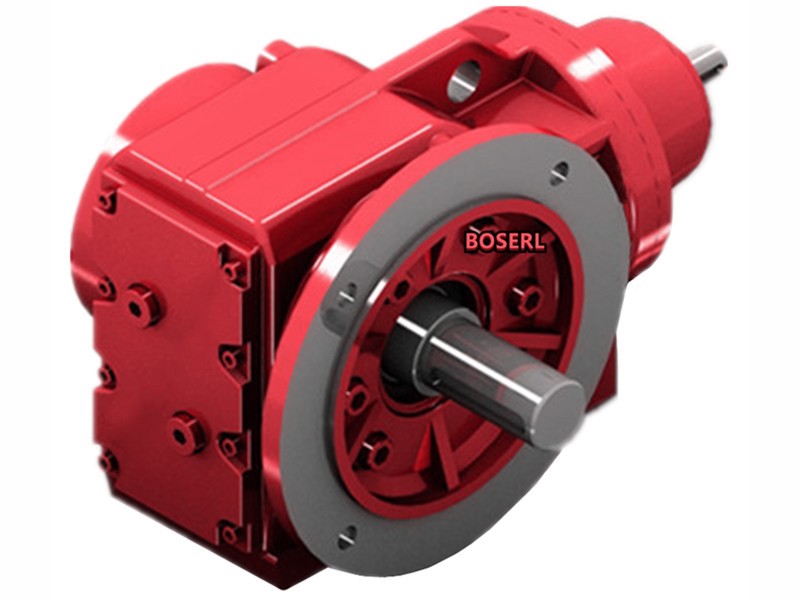

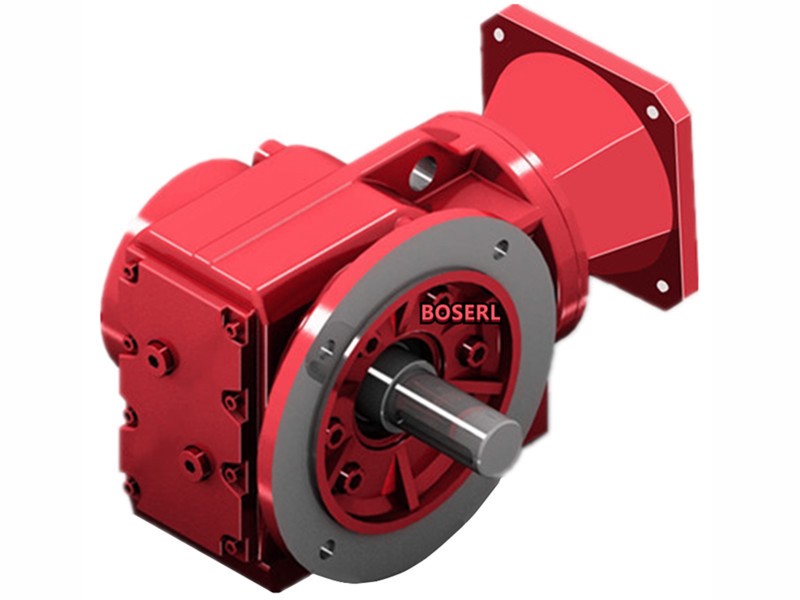

KF107減速機實物圖：圖一為KF107立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖二K107臥式方式安裝螺旋錐齒輪減速電機，圖三為KA107臥式方式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF107立式方式安裝直角空心軸螺旋錐齒輪減速機。

KF107減速機型號表示方法：

KF107減速機型號結構KF107-B37KW-4P-減速比-安裝方式-接線盒位置。

KF107減速機性能參數表結構說明：V強制冷卻風扇，RS逆止器，C防雨罩，Input Configuration代表輸入帶置，TF電機熱保護裝置，KF107、K107、KA107、KAF107減速機機座號，N代表徑向負荷，HR手動釋放裝置，1、min代表輸出轉數，HF手動釋放裝置帶自鎖功能。

KF107減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1方式安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。可提供S和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KF107減速機參數：

KF107減速機輸出轉數9.8轉，12轉，14轉，15轉，17轉，19轉，21轉，24轉，28轉，33轉，38轉，43轉，45轉，48轉，53轉，62轉，71轉，84轉，96轉，104轉，119轉，141轉，161轉，190轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KF107減速機電機可帶單相、直流、變頻、剎車、防爆、伺服、交流、三相電機KF107帶3KW，KF107帶4KW，KF107帶5.5KW，KF107帶7.5KW，KF107帶11KW，KF107帶15KW，KF107帶18.5KW，KF107帶22KW，KF107帶30KW，KF107帶37KW，KF107帶45KW。

KF107減速機輸出扭矩3600N.m，4070N.m，4190N.m，4300N.m，6800N.m，6890N.m，7050N.m，7200N.m，7360N.m，7840N.m，8000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

KF107減速機減速比7.35比，8.69比，9.94比，11.73比，13.43比，14.64比，16.75比，19.74比，22.62比，26.32比，29比，31.28比，32.69比，37比，42.33比，49.9比，57.17比，66.52比，73.3比，82.61比，90.96比，100.75比，112.41比，121.46比，143.47比。

KF107減速機外形尺寸：輸出軸直徑Φ90（可定做）+鍵5，高448*寬561（帶輸出軸）*長541

KF107減速機型號：KF107AQA80,KF107AQA100,KF107AQA115,KF107AQA140,KF107AQA160,KF107AQA190,KF107AQH80,KF107AQH100,KF107AQH115,KF107AQH140,KF107AQH160,KF107AQH190,JRTKF107-Y100M4,JRTKF107-Y112M4,JRTKF107-Y11KW,JRTKF107-Y132M4,JRTKF107-Y15KW,JRTKF107-Y160M4,JRTKF107-Y18.5KW,JRTKF107-Y180M4,JRTKF107-Y200M4,JRTKF107-Y225M4,JRTKF107-Y22KW,JRTKF107-Y30KW,JRTKF107-Y37KW,JRTKF107-Y3KW,JRTKF107-Y45KW,JRTKF107-Y4KW,JRTKF107-Y5.5KW,JRTKF107-Y7.5KW,JRTKF107-YEJ100M4,JRTKF107-YEJ112M4,JRTKF107-YEJ132M4,JRTKF107-YEJ160M4,JRTKF107-YEJ180M4,JRTKF107-YEJ200M4,JRTKF107-YEJ225M4,JRTKF107-YS100M4,JRTKF107-YS112M4,JRTKF107-YS132M4,JRTKF107-YS160M4,JRTKF107-YS180M4,JRTKF107-YS200M4,JRTKF107-YS225M4,JRTKF107-YVP100M4,JRTKF107-YVP112M4,JRTKF107-YVP132M4,JRTKF107-YVP160M4,JRTKF107-YVP180M4,JRTKF107-YVP200M4,JRTKF107-YVP225M4,JRTKF107-YVPEJ100M4,JRTKF107-YVPEJ112M4,JRTKF107-YVPEJ132M4,JRTKF107-YVPEJ160M4,JRTKF107-YVPEJ180M4,JRTKF107-YVPEJ200M4,JRTKF107-YVPEJ225M4,EWKF107-Y100M4,EWKF107-Y112M4,EWKF107-Y11KW,EWKF107-Y132M4,EWKF107-Y15KW,EWKF107-Y160M4,EWKF107-Y18.5KW,EWKF107-Y180M4,EWKF107-Y200M4,EWKF107-Y225M4,EWKF107-Y22KW,EWKF107-Y30KW,EWKF107-Y37KW,EWKF107-Y3KW,EWKF107-Y45KW,EWKF107-Y4KW,EWKF107-Y5.5KW,EWKF107-Y7.5KW,EWKF107-YEJ100M4,EWKF107-YEJ112M4,EWKF107-YEJ132M4,EWKF107-YEJ160M4,EWKF107-YEJ180M4,EWKF107-YEJ200M4,EWKF107-YEJ225M4,EWKF107-YS100M4,EWKF107-YS112M4,EWKF107-YS132M4,EWKF107-YS160M4,EWKF107-YS180M4,EWKF107-YS200M4,EWKF107-YS225M4,EWKF107-YVP100M4,EWKF107-YVP112M4,EWKF107-YVP132M4,EWKF107-YVP160M4,EWKF107-YVP180M4,EWKF107-YVP200M4,EWKF107-YVP225M4,EWKF107-YVPEJ100M4,EWKF107-YVPEJ112M4,EWKF107-YVPEJ132M4,EWKF107-YVPEJ160M4,EWKF107-YVPEJ180M4,EWKF107-YVPEJ200M4,EWKF107-YVPEJ225M4,SLKF107-Y100M4,SLKF107-Y112M4,SLKF107-Y11KW,SLKF107-Y132M4,SLKF107-Y15KW,SLKF107-Y160M4,SLKF107-Y18.5KW,SLKF107-Y180M4,SLKF107-Y200M4,SLKF107-Y225M4,SLKF107-Y22KW,SLKF107-Y30KW,SLKF107-Y37KW,SLKF107-Y3KW,SLKF107-Y45KW,SLKF107-Y4KW,SLKF107-Y5.5KW,SLKF107-Y7.5KW,SLKF107-YEJ100M4,SLKF107-YEJ112M4,SLKF107-YEJ132M4,SLKF107-YEJ160M4,SLKF107-YEJ180M4,SLKF107-YEJ200M4,SLKF107-YEJ225M4,SLKF107-YS100M4,SLKF107-YS112M4,SLKF107-YS132M4,SLKF107-YS160M4,SLKF107-YS180M4,SLKF107-YS200M4,SLKF107-YS225M4,SLKF107-YVP100M4,SLKF107-YVP112M4,SLKF107-YVP132M4,SLKF107-YVP160M4,SLKF107-YVP180M4,SLKF107-YVP200M4,SLKF107-YVP225M4,SLKF107-YVPEJ100M4,SLKF107-YVPEJ112M4,SLKF107-YVPEJ132M4,SLKF107-YVPEJ160M4,SLKF107-YVPEJ180M4,SLKF107-YVPEJ200M4,SLKF107-YVPEJ225M4,DSZKF107-Y100M4,DSZKF107-Y112M4,DSZKF107-Y11KW,DSZKF107-Y132M4,DSZKF107-Y15KW,DSZKF107-Y160M4,DSZKF107-Y18.5KW,DSZKF107-Y180M4,DSZKF107-Y200M4,DSZKF107-Y225M4,DSZKF107-Y22KW,DSZKF107-Y30KW,DSZKF107-Y37KW,DSZKF107-Y3KW,DSZKF107-Y45KW,DSZKF107-Y4KW,DSZKF107-Y5.5KW,DSZKF107-Y7.5KW,DSZKF107-YEJ100M4,DSZKF107-YEJ112M4,DSZKF107-YEJ132M4,DSZKF107-YEJ160M4,DSZKF107-YEJ180M4,DSZKF107-YEJ200M4,DSZKF107-YEJ225M4,DSZKF107-YS100M4,DSZKF107-YS112M4,DSZKF107-YS132M4,DSZKF107-YS160M4,DSZKF107-YS180M4,DSZKF107-YS200M4,DSZKF107-YS225M4,DSZKF107-YVP100M4,DSZKF107-YVP112M4,DSZKF107-YVP132M4,DSZKF107-YVP160M4,DSZKF107-YVP180M4,DSZKF107-YVP200M4,DSZKF107-YVP225M4,DSZKF107-YVPEJ100M4,DSZKF107-YVPEJ112M4,DSZKF107-YVPEJ132M4,DSZKF107-YVPEJ160M4,DSZKF107-YVPEJ180M4,DSZKF107-YVPEJ200M4,DSZKF107-YVPEJ225M4,BKF107-Y100M4,BKF107-Y112M4,BKF107-Y11KW,BKF107-Y132M4,BKF107-Y15KW,BKF107-Y160M4,BKF107-Y18.5KW,BKF107-Y180M4,BKF107-Y200M4,BKF107-Y225M4,BKF107-Y22KW,BKF107-Y30KW,BKF107-Y37KW,BKF107-Y3KW,BKF107-Y45KW,BKF107-Y4KW,BKF107-Y5.5KW,BKF107-Y7.5KW,BKF107-YEJ100M4,BKF107-YEJ112M4,BKF107-YEJ132M4,BKF107-YEJ160M4,BKF107-YEJ180M4,BKF107-YEJ200M4,BKF107-YEJ225M4,BKF107-YS100M4,BKF107-YS112M4,BKF107-YS132M4,BKF107-YS160M4,BKF107-YS180M4,BKF107-YS200M4,BKF107-YS225M4,BKF107-YVP100M4,BKF107-YVP112M4,BKF107-YVP132M4,BKF107-YVP160M4,BKF107-YVP180M4,BKF107-YVP200M4,BKF107-YVP225M4,BKF107-YVPEJ100M4,BKF107-YVPEJ112M4,BKF107-YVPEJ132M4,BKF107-YVPEJ160M4,BKF107-YVPEJ180M4,BKF107-YVPEJ200M4,BKF107-YVPEJ225M4,GKF107-Y100M4,GKF107-Y112M4,GKF107-Y11KW,GKF107-Y132M4,GKF107-Y15KW,GKF107-Y160M4,GKF107-Y18.5KW,GKF107-Y180M4,GKF107-Y200M4,GKF107-Y225M4,GKF107-Y22KW,GKF107-Y30KW,GKF107-Y37KW,GKF107-Y3KW,GKF107-Y45KW,GKF107-Y4KW,GKF107-Y5.5KW,GKF107-Y7.5KW,GKF107-YEJ100M4,GKF107-YEJ112M4,GKF107-YEJ132M4,GKF107-YEJ160M4,GKF107-YEJ180M4,GKF107-YEJ200M4,GKF107-YEJ225M4,GKF107-YS100M4,GKF107-YS112M4,GKF107-YS132M4,GKF107-YS160M4,GKF107-YS180M4,GKF107-YS200M4,GKF107-YS225M4,GKF107-YVP100M4,GKF107-YVP112M4,GKF107-YVP132M4,GKF107-YVP160M4,GKF107-YVP180M4,GKF107-YVP200M4,GKF107-YVP225M4,GKF107-YVPEJ100M4,GKF107-YVPEJ112M4,GKF107-YVPEJ132M4,GKF107-YVPEJ160M4,GKF107-YVPEJ180M4,GKF107-YVPEJ200M4,GKF107-YVPEJ225M4,KCF107-Y100M4,KCF107-Y112M4,KCF107-Y11KW,KCF107-Y132M4,KCF107-Y15KW,KCF107-Y160M4,KCF107-Y18.5KW,KCF107-Y180M4,KCF107-Y200M4,KCF107-Y225M4,KCF107-Y22KW,KCF107-Y30KW,KCF107-Y37KW,KCF107-Y3KW,KCF107-Y45KW,KCF107-Y4KW,KCF107-Y5.5KW,KCF107-Y7.5KW,KCF107-YEJ100M4,KCF107-YEJ112M4,KCF107-YEJ132M4,KCF107-YEJ160M4,KCF107-YEJ180M4,KCF107-YEJ200M4,KCF107-YEJ225M4,KCF107-YS100M4,KCF107-YS112M4,KCF107-YS132M4,KCF107-YS160M4,KCF107-YS180M4,KCF107-YS200M4,KCF107-YS225M4,KCF107-YVP100M4,KCF107-YVP112M4,KCF107-YVP132M4,KCF107-YVP160M4,KCF107-YVP180M4,KCF107-YVP200M4,KCF107-YVP225M4,KCF107-YVPEJ100M4,KCF107-YVPEJ112M4,KCF107-YVPEJ132M4,KCF107-YVPEJ160M4,KCF107-YVPEJ180M4,KCF107-YVPEJ200M4,KCF107-YVPEJ225M4,MTJF107-Y100M4,MTJF107-Y112M4,MTJF107-Y11KW,MTJF107-Y132M4,MTJF107-Y15KW,MTJF107-Y160M4,MTJF107-Y18.5KW,MTJF107-Y180M4,MTJF107-Y200M4,MTJF107-Y225M4,MTJF107-Y22KW,MTJF107-Y30KW,MTJF107-Y37KW,MTJF107-Y3KW,MTJF107-Y45KW,MTJF107-Y4KW,MTJF107-Y5.5KW,MTJF107-Y7.5KW,MTJF107-YEJ100M4,MTJF107-YEJ112M4,MTJF107-YEJ132M4,MTJF107-YEJ160M4,MTJF107-YEJ180M4,MTJF107-YEJ200M4,MTJF107-YEJ225M4,MTJF107-YS100M4,MTJF107-YS112M4,MTJF107-YS132M4,MTJF107-YS160M4,MTJF107-YS180M4,MTJF107-YS200M4,MTJF107-YS225M4,MTJF107-YVP100M4,MTJF107-YVP112M4,MTJF107-YVP132M4,MTJF107-YVP160M4,MTJF107-YVP180M4,MTJF107-YVP200M4,MTJF107-YVP225M4,MTJF107-YVPEJ100M4,MTJF107-YVPEJ112M4,MTJF107-YVPEJ132M4,MTJF107-YVPEJ160M4,MTJF107-YVPEJ180M4,MTJF107-YVPEJ200M4,MTJF107-YVPEJ225M4,WXKF107-WSS100M4,WXKF107-WSS112M4,WXKF107-WSS11KW,WXKF107-WSS132M4,WXKF107-WSS15KW,WXKF107-WSS160M4,WXKF107-WSS18.5KW,WXKF107-WSS180M4,WXKF107-WSS200M4,WXKF107-WSS225M4,WXKF107-WSS22KW,WXKF107-WSS30KW,WXKF107-WSS37KW,WXKF107-WSS3KW,WXKF107-WSS45KW,WXKF107-WSS4KW,WXKF107-WSS5.5KW,WXKF107-WSS7.5KW,WXKF107-WSSB100M4,WXKF107-WSSB112M4,WXKF107-WSSB132M4,WXKF107-WSSB160M4,WXKF107-WSSB180M4,WXKF107-WSSB200M4,WXKF107-WSSB225M4,WXKF107-WSSVP100M4,WXKF107-WSSVP112M4,WXKF107-WSSVP132M4,WXKF107-WSSVP160M4,WXKF107-WSSVP180M4,WXKF107-WSSVP200M4,WXKF107-WSSVP225M4,WXKF107-WSSVPB100M4,WXKF107-WSSVPB112M4,WXKF107-WSSVPB132M4,WXKF107-WSSVPB160M4,WXKF107-WSSVPB180M4,WXKF107-WSSVPB200M4,WXKF107-WSSVPB225M4。伺服電機減速機
