K87減速機重量：K87減速機重量85公斤，K87減速機配電機重量分別如下

K87減速機配0.75KW電機重量101公斤，K87減速機配1.1KW電機重量105公斤，K87減速機配1.5KW電機重量108公斤，K87減速機配2.2KW電機重量117公斤，K87減速機配3KW電機重量120公斤，K87減速機配4KW電機重量131公斤，K87減速機配5.5KW電機重量145公斤，K87減速機配7.5KW電機重量158公斤，K87減速機配11KW電機重量200公斤，K87減速機配15KW電機重量220公斤，K87減速機配18.5KW電機重量257公斤，K87減速機配22KW電機重量270公斤。直角減速機

K87減速機加油量：可加礦物油

K87減速機M1安裝加3.7升，K87減速機M2安裝加8升，K87減速機M3安裝加8.7升，K87減速機M4安裝加10.9升，K87減速機M5安裝加8升，K87減速機M6安裝加8升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

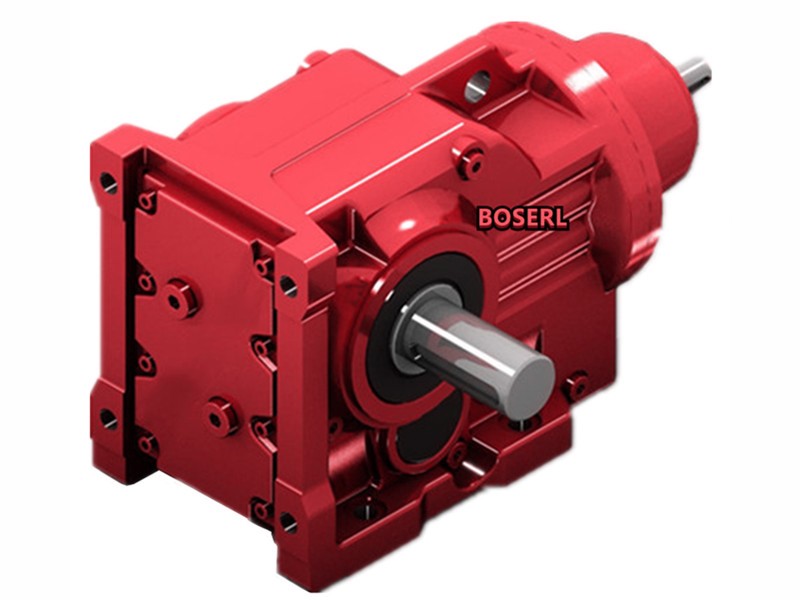

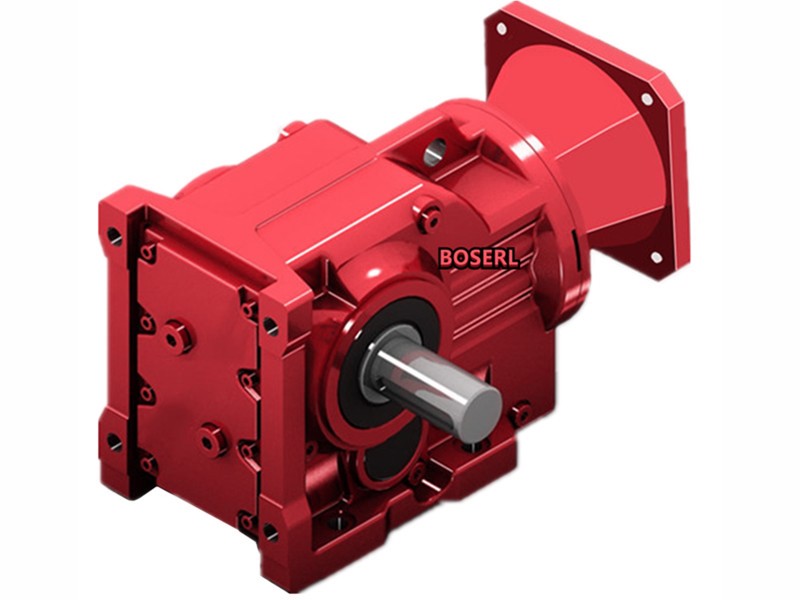

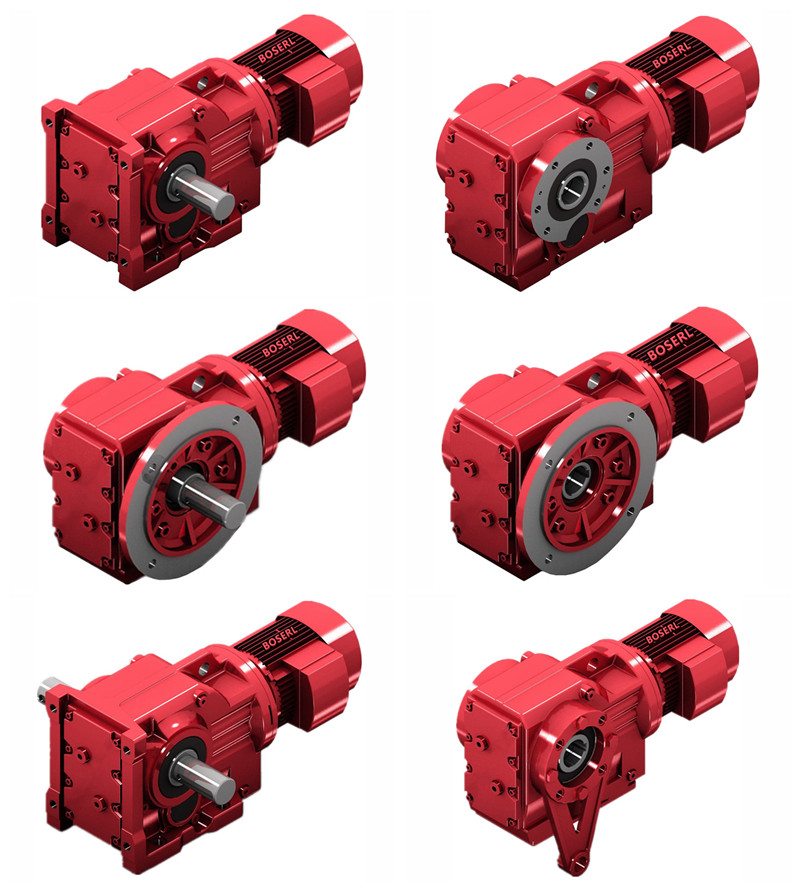

K87減速機實物圖：圖一為K87臥式安裝螺旋錐齒輪減速電機，圖二KF87立式安裝實心軸輸出螺旋錐齒輪減速電機，圖三為KA87臥式安裝空心軸螺旋錐齒輪減速電機，圖四為KAF87立式安裝直角空心軸螺旋錐齒輪減速機。

K87減速機型號表示方法：

K87減速機型號結構K87-B22KW-4P-減速比-安裝方式-接線盒位置。

K87減速機性能參數表結構說明：RS逆止器，V強制冷卻風扇，C防雨罩，Input Configuration代表輸入配置，TF電機熱保護裝置，K87、KF87、KA87、KAF87減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置帶自鎖功能。K系列減速機

K87減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

K87減速機結構圖：

K87減速機參數：

K87減速機電機可配單相/直流/變頻/剎車/防爆/伺服/交流/三相電機K87配K87配0.75KW，K87配1.1KW，K87配1.5KW，K87配2.2KW，K87配3KW，K87配4KW，K87配5.5KW，K87配7.5KW，K87配11KW，K87配15KW，K87配18.5KW，K87配22KW。

K87減速機減速比197.37比,174.19比,164.34比,147.32比,126.91比,115.82比,102.71比,86.34比,79.34比,70.46比,63比,56.64比,49.16比,44.02比,36.52比,31.39比,27.88比,24.92比,22.41比,19.45比,17.42比,16比,14.45比,12.56比,11.17比,10比,8.29比,7.21比。

K87減速機輸出轉數7.1轉,8轉,8.5轉,9.5轉,11轉,12轉,14轉,16轉,18轉,20轉,22轉,25轉,28轉,32轉,38轉,45轉,50轉,56轉,62轉,72轉,80轉,88轉,97轉,111轉,125轉,140轉,169轉,194轉。（以上轉數均為四級電機算出的，可用2P/6P/8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

K87減速機輸出扭矩1300N.m,1400N.m,1500N.m,1800N.m,2000N.m,2100N.m,2200N.m,2300N.m,2500N.m,2600N.m,2700N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

K87減速機尺寸圖紙：高340*寬354（帶輸出軸）*長389

K87減速機型號：K87AQA80,K87AQA100,K87AQA115,K87AQA140,K87AQA160,K87AQA190,K87AQH80,K87AQH100,K87AQH115,K87AQH140,K87AQH160,K87AQH190,JRTK87-Y0.37KW,JRTK87-Y0.55KW,JRTK87-Y0.75KW,JRTK87-Y1.1KW,JRTK87-Y1.5KW,JRTK87-Y100M4,JRTK87-Y112M4,JRTK87-Y11KW,JRTK87-Y132M4,JRTK87-Y15KW,JRTK87-Y160M4,JRTK87-Y18.5KW,JRTK87-Y180M4,JRTK87-Y2.2KW,JRTK87-Y200M4,JRTK87-Y22KW,JRTK87-Y3KW,JRTK87-Y4KW,JRTK87-Y5.5KW,JRTK87-Y7.5KW,JRTK87-Y71M4,JRTK87-Y80M4,JRTK87-Y90M4,JRTK87-YEJ100M4,JRTK87-YEJ112M4,JRTK87-YEJ132M4,JRTK87-YEJ160M4,JRTK87-YEJ180M4,JRTK87-YEJ200M4,JRTK87-YEJ71M4,JRTK87-YEJ80M4,JRTK87-YEJ90M4,JRTK87-YS100M4,JRTK87-YS112M4,JRTK87-YS132M4,JRTK87-YS160M4,JRTK87-YS180M4,JRTK87-YS200M4,JRTK87-YS71M4,JRTK87-YS80M4,JRTK87-YS90M4,JRTK87-YVP100M4,JRTK87-YVP112M4,JRTK87-YVP132M4,JRTK87-YVP160M4,JRTK87-YVP180M4,JRTK87-YVP200M4,JRTK87-YVP71M4,JRTK87-YVP80M4,JRTK87-YVP90M4,JRTK87-YVPEJ100M4,JRTK87-YVPEJ112M4,JRTK87-YVPEJ132M4,JRTK87-YVPEJ160M4,JRTK87-YVPEJ180M4,JRTK87-YVPEJ200M4,JRTK87-YVPEJ71M4,JRTK87-YVPEJ80M4,JRTK87-YVPEJ90M4,EWK87-Y0.37KW,EWK87-Y0.55KW,EWK87-Y0.75KW,EWK87-Y1.1KW,EWK87-Y1.5KW,EWK87-Y100M4,EWK87-Y112M4,EWK87-Y11KW,EWK87-Y132M4,EWK87-Y15KW,EWK87-Y160M4,EWK87-Y18.5KW,EWK87-Y180M4,EWK87-Y2.2KW,EWK87-Y200M4,EWK87-Y22KW,EWK87-Y3KW,EWK87-Y4KW,EWK87-Y5.5KW,EWK87-Y7.5KW,EWK87-Y71M4,EWK87-Y80M4,EWK87-Y90M4,EWK87-YEJ100M4,EWK87-YEJ112M4,EWK87-YEJ132M4,EWK87-YEJ160M4,EWK87-YEJ180M4,EWK87-YEJ200M4,EWK87-YEJ71M4,EWK87-YEJ80M4,EWK87-YEJ90M4,EWK87-YS100M4,EWK87-YS112M4,EWK87-YS132M4,EWK87-YS160M4,EWK87-YS180M4,EWK87-YS200M4,EWK87-YS71M4,EWK87-YS80M4,EWK87-YS90M4,EWK87-YVP100M4,EWK87-YVP112M4,EWK87-YVP132M4,EWK87-YVP160M4,EWK87-YVP180M4,EWK87-YVP200M4,EWK87-YVP71M4,EWK87-YVP80M4,EWK87-YVP90M4,EWK87-YVPEJ100M4,EWK87-YVPEJ112M4,EWK87-YVPEJ132M4,EWK87-YVPEJ160M4,EWK87-YVPEJ180M4,EWK87-YVPEJ200M4,EWK87-YVPEJ71M4,EWK87-YVPEJ80M4,EWK87-YVPEJ90M4,SLK87-Y0.37KW,SLK87-Y0.55KW,SLK87-Y0.75KW,SLK87-Y1.1KW,SLK87-Y1.5KW,SLK87-Y100M4,SLK87-Y112M4,SLK87-Y11KW,SLK87-Y132M4,SLK87-Y15KW,SLK87-Y160M4,SLK87-Y18.5KW,SLK87-Y180M4,SLK87-Y2.2KW,SLK87-Y200M4,SLK87-Y22KW,SLK87-Y3KW,SLK87-Y4KW,SLK87-Y5.5KW,SLK87-Y7.5KW,SLK87-Y71M4,SLK87-Y80M4,SLK87-Y90M4,SLK87-YEJ100M4,SLK87-YEJ112M4,SLK87-YEJ132M4,SLK87-YEJ160M4,SLK87-YEJ180M4,SLK87-YEJ200M4,SLK87-YEJ71M4,SLK87-YEJ80M4,SLK87-YEJ90M4,SLK87-YS100M4,SLK87-YS112M4,SLK87-YS132M4,SLK87-YS160M4,SLK87-YS180M4,SLK87-YS200M4,SLK87-YS71M4,SLK87-YS80M4,SLK87-YS90M4,SLK87-YVP100M4,SLK87-YVP112M4,SLK87-YVP132M4,SLK87-YVP160M4,SLK87-YVP180M4,SLK87-YVP200M4,SLK87-YVP71M4,SLK87-YVP80M4,SLK87-YVP90M4,SLK87-YVPEJ100M4,SLK87-YVPEJ112M4,SLK87-YVPEJ132M4,SLK87-YVPEJ160M4,SLK87-YVPEJ180M4,SLK87-YVPEJ200M4,SLK87-YVPEJ71M4,SLK87-YVPEJ80M4,SLK87-YVPEJ90M4,DSZK87-Y0.37KW,DSZK87-Y0.55KW,DSZK87-Y0.75KW,DSZK87-Y1.1KW,DSZK87-Y1.5KW,DSZK87-Y100M4,DSZK87-Y112M4,DSZK87-Y11KW,DSZK87-Y132M4,DSZK87-Y15KW,DSZK87-Y160M4,DSZK87-Y18.5KW,DSZK87-Y180M4,DSZK87-Y2.2KW,DSZK87-Y200M4,DSZK87-Y22KW,DSZK87-Y3KW,DSZK87-Y4KW,DSZK87-Y5.5KW,DSZK87-Y7.5KW,DSZK87-Y71M4,DSZK87-Y80M4,DSZK87-Y90M4,DSZK87-YEJ100M4,DSZK87-YEJ112M4,DSZK87-YEJ132M4,DSZK87-YEJ160M4,DSZK87-YEJ180M4,DSZK87-YEJ200M4,DSZK87-YEJ71M4,DSZK87-YEJ80M4,DSZK87-YEJ90M4,DSZK87-YS100M4,DSZK87-YS112M4,DSZK87-YS132M4,DSZK87-YS160M4,DSZK87-YS180M4,DSZK87-YS200M4,DSZK87-YS71M4,DSZK87-YS80M4,DSZK87-YS90M4,DSZK87-YVP100M4,DSZK87-YVP112M4,DSZK87-YVP132M4,DSZK87-YVP160M4,DSZK87-YVP180M4,DSZK87-YVP200M4,DSZK87-YVP71M4,DSZK87-YVP80M4,DSZK87-YVP90M4,DSZK87-YVPEJ100M4,DSZK87-YVPEJ112M4,DSZK87-YVPEJ132M4,DSZK87-YVPEJ160M4,DSZK87-YVPEJ180M4,DSZK87-YVPEJ200M4,DSZK87-YVPEJ71M4,DSZK87-YVPEJ80M4,DSZK87-YVPEJ90M4,BK87-Y0.37KW,BK87-Y0.55KW,BK87-Y0.75KW,BK87-Y1.1KW,BK87-Y1.5KW,BK87-Y100M4,BK87-Y112M4,BK87-Y11KW,BK87-Y132M4,BK87-Y15KW,BK87-Y160M4,BK87-Y18.5KW,BK87-Y180M4,BK87-Y2.2KW,BK87-Y200M4,BK87-Y22KW,BK87-Y3KW,BK87-Y4KW,BK87-Y5.5KW,BK87-Y7.5KW,BK87-Y71M4,BK87-Y80M4,BK87-Y90M4,BK87-YEJ100M4,BK87-YEJ112M4,BK87-YEJ132M4,BK87-YEJ160M4,BK87-YEJ180M4,BK87-YEJ200M4,BK87-YEJ71M4,BK87-YEJ80M4,BK87-YEJ90M4,BK87-YS100M4,BK87-YS112M4,BK87-YS132M4,BK87-YS160M4,BK87-YS180M4,BK87-YS200M4,BK87-YS71M4,BK87-YS80M4,BK87-YS90M4,BK87-YVP100M4,BK87-YVP112M4,BK87-YVP132M4,BK87-YVP160M4,BK87-YVP180M4,BK87-YVP200M4,BK87-YVP71M4,BK87-YVP80M4,BK87-YVP90M4,BK87-YVPEJ100M4,BK87-YVPEJ112M4,BK87-YVPEJ132M4,BK87-YVPEJ160M4,BK87-YVPEJ180M4,BK87-YVPEJ200M4,BK87-YVPEJ71M4,BK87-YVPEJ80M4,BK87-YVPEJ90M4,GK87-Y0.37KW,GK87-Y0.55KW,GK87-Y0.75KW,GK87-Y1.1KW,GK87-Y1.5KW,GK87-Y100M4,GK87-Y112M4,GK87-Y11KW,GK87-Y132M4,GK87-Y15KW,GK87-Y160M4,GK87-Y18.5KW,GK87-Y180M4,GK87-Y2.2KW,GK87-Y200M4,GK87-Y22KW,GK87-Y3KW,GK87-Y4KW,GK87-Y5.5KW,GK87-Y7.5KW,GK87-Y71M4,GK87-Y80M4,GK87-Y90M4,GK87-YEJ100M4,GK87-YEJ112M4,GK87-YEJ132M4,GK87-YEJ160M4,GK87-YEJ180M4,GK87-YEJ200M4,GK87-YEJ71M4,GK87-YEJ80M4,GK87-YEJ90M4,GK87-YS100M4,GK87-YS112M4,GK87-YS132M4,GK87-YS160M4,GK87-YS180M4,GK87-YS200M4,GK87-YS71M4,GK87-YS80M4,GK87-YS90M4,GK87-YVP100M4,GK87-YVP112M4,GK87-YVP132M4,GK87-YVP160M4,GK87-YVP180M4,GK87-YVP200M4,GK87-YVP71M4,GK87-YVP80M4,GK87-YVP90M4,GK87-YVPEJ100M4,GK87-YVPEJ112M4,GK87-YVPEJ132M4,GK87-YVPEJ160M4,GK87-YVPEJ180M4,GK87-YVPEJ200M4,GK87-YVPEJ71M4,GK87-YVPEJ80M4,GK87-YVPEJ90M4,KC87-Y0.37KW,KC87-Y0.55KW,KC87-Y0.75KW,KC87-Y1.1KW,KC87-Y1.5KW,KC87-Y100M4,KC87-Y112M4,KC87-Y11KW,KC87-Y132M4,KC87-Y15KW,KC87-Y160M4,KC87-Y18.5KW,KC87-Y180M4,KC87-Y2.2KW,KC87-Y200M4,KC87-Y22KW,KC87-Y3KW,KC87-Y4KW,KC87-Y5.5KW,KC87-Y7.5KW,KC87-Y71M4,KC87-Y80M4,KC87-Y90M4,KC87-YEJ100M4,KC87-YEJ112M4,KC87-YEJ132M4,KC87-YEJ160M4,KC87-YEJ180M4,KC87-YEJ200M4,KC87-YEJ71M4,KC87-YEJ80M4,KC87-YEJ90M4,KC87-YS100M4,KC87-YS112M4,KC87-YS132M4,KC87-YS160M4,KC87-YS180M4,KC87-YS200M4,KC87-YS71M4,KC87-YS80M4,KC87-YS90M4,KC87-YVP100M4,KC87-YVP112M4,KC87-YVP132M4,KC87-YVP160M4,KC87-YVP180M4,KC87-YVP200M4,KC87-YVP71M4,KC87-YVP80M4,KC87-YVP90M4,KC87-YVPEJ100M4,KC87-YVPEJ112M4,KC87-YVPEJ132M4,KC87-YVPEJ160M4,KC87-YVPEJ180M4,KC87-YVPEJ200M4,KC87-YVPEJ71M4,KC87-YVPEJ80M4,KC87-YVPEJ90M4,MTJ87-Y0.37KW,MTJ87-Y0.55KW,MTJ87-Y0.75KW,MTJ87-Y1.1KW,MTJ87-Y1.5KW,MTJ87-Y100M4,MTJ87-Y112M4,MTJ87-Y11KW,MTJ87-Y132M4,MTJ87-Y15KW,MTJ87-Y160M4,MTJ87-Y18.5KW,MTJ87-Y180M4,MTJ87-Y2.2KW,MTJ87-Y200M4,MTJ87-Y22KW,MTJ87-Y3KW,MTJ87-Y4KW,MTJ87-Y5.5KW,MTJ87-Y7.5KW,MTJ87-Y71M4,MTJ87-Y80M4,MTJ87-Y90M4,MTJ87-YEJ100M4,MTJ87-YEJ112M4,MTJ87-YEJ132M4,MTJ87-YEJ160M4,MTJ87-YEJ180M4,MTJ87-YEJ200M4,MTJ87-YEJ71M4,MTJ87-YEJ80M4,MTJ87-YEJ90M4,MTJ87-YS100M4,MTJ87-YS112M4,MTJ87-YS132M4,MTJ87-YS160M4,MTJ87-YS180M4,MTJ87-YS200M4,MTJ87-YS71M4,MTJ87-YS80M4,MTJ87-YS90M4,MTJ87-YVP100M4,MTJ87-YVP112M4,MTJ87-YVP132M4,MTJ87-YVP160M4,MTJ87-YVP180M4,MTJ87-YVP200M4,MTJ87-YVP71M4,MTJ87-YVP80M4,MTJ87-YVP90M4,MTJ87-YVPEJ100M4,MTJ87-YVPEJ112M4,MTJ87-YVPEJ132M4,MTJ87-YVPEJ160M4,MTJ87-YVPEJ180M4,MTJ87-YVPEJ200M4,MTJ87-YVPEJ71M4,MTJ87-YVPEJ80M4,MTJ87-YVPEJ90M4,WXK87-WSS0.37KW,WXK87-WSS0.55KW,WXK87-WSS0.75KW,WXK87-WSS1.1KW,WXK87-WSS1.5KW,WXK87-WSS100M4,WXK87-WSS112M4,WXK87-WSS11KW,WXK87-WSS132M4,WXK87-WSS15KW,WXK87-WSS160M4,WXK87-WSS18.5KW,WXK87-WSS180M4,WXK87-WSS2.2KW,WXK87-WSS200M4,WXK87-WSS22KW,WXK87-WSS3KW,WXK87-WSS4KW,WXK87-WSS5.5KW,WXK87-WSS7.5KW,WXK87-WSS71M4,WXK87-WSS80M4,WXK87-WSS90M4,WXK87-WSSB100M4,WXK87-WSSB112M4,WXK87-WSSB132M4,WXK87-WSSB160M4,WXK87-WSSB180M4,WXK87-WSSB200M4,WXK87-WSSB71M4,WXK87-WSSB80M4,WXK87-WSSB90M4,WXK87-WSSVP100M4,WXK87-WSSVP112M4,WXK87-WSSVP132M4,WXK87-WSSVP160M4,WXK87-WSSVP180M4,WXK87-WSSVP200M4,WXK87-WSSVP71M4,WXK87-WSSVP80M4,WXK87-WSSVP90M4,WXK87-WSSVPB100M4,WXK87-WSSVPB112M4,WXK87-WSSVPB132M4,WXK87-WSSVPB160M4,WXK87-WSSVPB180M4,WXK87-WSSVPB200M4,WXK87-WSSVPB71M4,WXK87-WSSVPB80M4,WXK87-WSSVPB90M4。
