FF77減速機重量：FF77減速機重量92公斤，F(xiàn)F77減速機帶電機重量分別如下

FF77減速機帶0.37KW電機重量102.5公斤，F(xiàn)F77減速機帶0.55KW電機重量107公斤，F(xiàn)F77減速機帶0.75KW電機重量108公斤，F(xiàn)F77減速機帶1.1KW電機重量112公斤，F(xiàn)F77減速機帶1.5KW電機重量115公斤，F(xiàn)F77減速機帶2.2KW電機重量124公斤，F(xiàn)F77減速機帶3KW電機重量127公斤，F(xiàn)F77減速機帶4KW電機重量138公斤，F(xiàn)F77減速機帶5.5KW電機重量152公斤，F(xiàn)F77減速機帶7.5KW電機重量165公斤，F(xiàn)F77減速機帶11KW電機重量207公斤。

FF77減速機加油量：可加合成油

FF77減速機M2安裝方式加7.3升，F(xiàn)F77減速機M1安裝方式加5.9升，F(xiàn)F77減速機M3安裝方式加4.3升，F(xiàn)F77減速機M4安裝方式加8.1升，F(xiàn)F77減速機M5安裝方式加6升，F(xiàn)F77減速機M6安裝方式加6.3升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式方式時,您必須根據改變后的安裝方式方式相應調整加注潤滑劑。上述中列出了安裝方式方式M1-M6的減速機相應的標準參考潤滑油注入量值。剎車電機減速機

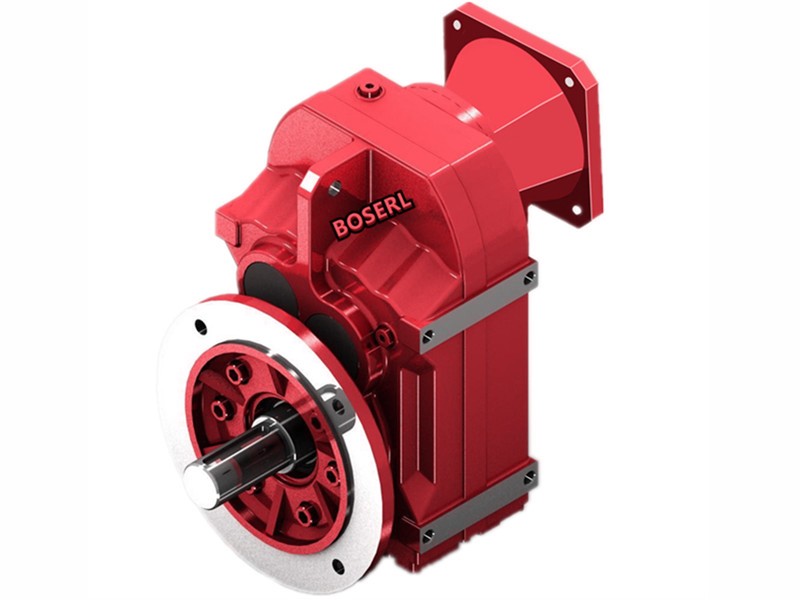

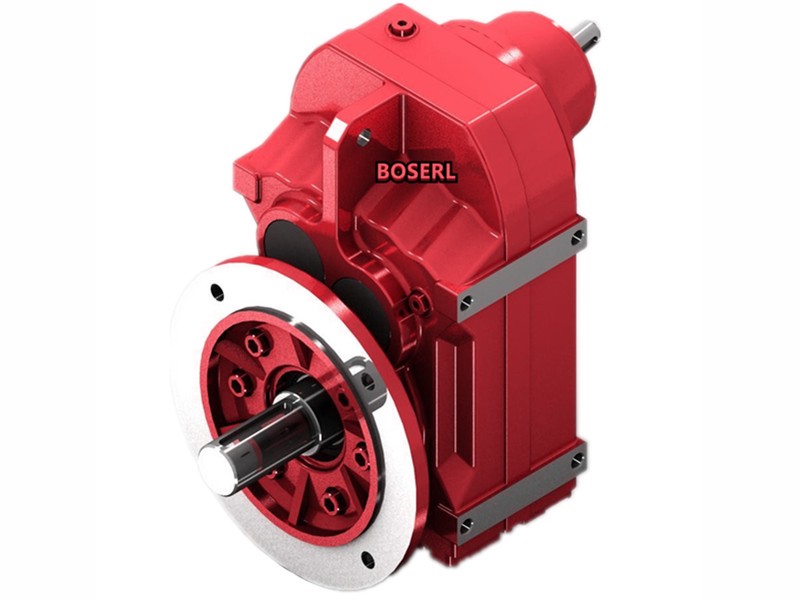

FF77減速機實物圖：圖一為FF77立式法蘭軸輸出平行軸斜齒輪減速機，圖二F77底腳安裝方式軸輸出平行軸減速機，圖三為FA77臥式孔輸出平行軸減速機，圖四為FAF77立式法蘭孔輸出平行軸斜齒輪減速機。

FF77減速機型號表示方法：

FF77減速機型號結構FF77-B5.5KW-4P-減速比-安裝方式方式-接線盒位置。

FF77減速機性能參數表結構說明：HF手動釋放裝置帶自鎖功能，F(xiàn)F77、F77、FA77、FAF77減速機機座號，HR手動釋放裝置，TF電機熱保護裝置，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FF77減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝方式，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

FF77減速機參數：

FF77減速機輸出轉數5轉，6轉，7轉，8轉，9轉，11轉，12轉，13轉，15轉，16轉，19轉，21轉，24轉，25轉，29轉，32轉，37轉，41轉，47轉，55轉，38轉，44轉，49轉，55轉，65轉，71轉，80轉，90轉，100轉，115轉，128轉，151轉，169轉，189轉，211轉，243轉，271轉，327轉。（以上轉數均為四級電機算出的，可用2P、6P、8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FF77減速機電機可帶直流、變頻、剎車、防爆、伺服、交流、三相、單相電機FF77帶0.12KW，F(xiàn)F77帶0.18KW，F(xiàn)F77帶0.25KW，F(xiàn)F77帶0.37KW，F(xiàn)F77帶0.55KW，F(xiàn)F77帶0.75KW，F(xiàn)F77帶1.1KW，F(xiàn)F77帶1.5KW，F(xiàn)F77帶2.2KW，F(xiàn)F77帶3KW，F(xiàn)F77帶4KW，F(xiàn)F77帶5.5KW，F(xiàn)F77帶7.5KW，F(xiàn)F77帶11KW。

FF77減速機輸出扭矩1500N.m，1450N.m，1110N.m，1380N.m，1430N.m，1080N.m，1010N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FF77減速機減速比1:281，1:262，1:225，1:198，1:188，1:166，1:142，1:130，1:114，1:108，1:94，1:85，1:75，1:72，1:66，1:58，1:55，1:48，1:43，1:38，1:33，1:30，1:25，1:36，1:31，1:28，1:25，1:21，1:19，1:17，1:15，1:14，1:12，1:10，1:9，1:8，1:7，1:6，1:5，1:4。

FF77減速機外形尺寸：輸出軸直徑Φ50+鍵3.5（可定做），高431*寬270*長330（帶輸出軸）平行軸斜齒輪減速機

FF77減速機型號：FF77AQA80,FF77AQA100,FF77AQA115,FF77AQA140,FF77AQA160,FF77AQA190,FF77AQH80,FF77AQH100,FF77AQH115,FF77AQH140,FF77AQH160,FF77AQH190,JRTFF77-Y0.18KW,JRTFF77-Y0.25KW,JRTFF77-Y0.37KW,JRTFF77-Y0.55KW,JRTFF77-Y0.75KW,JRTFF77-Y1.1KW,JRTFF77-Y1.5KW,JRTFF77-Y100M4,JRTFF77-Y112M4,JRTFF77-Y11KW,JRTFF77-Y132M4,JRTFF77-Y160M4,JRTFF77-Y2.2KW,JRTFF77-Y3KW,JRTFF77-Y4KW,JRTFF77-Y5.5KW,JRTFF77-Y63M4,JRTFF77-Y7.5KW,JRTFF77-Y71M4,JRTFF77-Y80M4,JRTFF77-Y90M4,JRTFF77-YEJ100M4,JRTFF77-YEJ112M4,JRTFF77-YEJ132M4,JRTFF77-YEJ160M4,JRTFF77-YEJ63M4,JRTFF77-YEJ71M4,JRTFF77-YEJ80M4,JRTFF77-YEJ90M4,JRTFF77-YS100M4,JRTFF77-YS112M4,JRTFF77-YS132M4,JRTFF77-YS160M4,JRTFF77-YS63M4,JRTFF77-YS71M4,JRTFF77-YS80M4,JRTFF77-YS90M4,JRTFF77-YVP100M4,JRTFF77-YVP112M4,JRTFF77-YVP132M4,JRTFF77-YVP160M4,JRTFF77-YVP63M4,JRTFF77-YVP71M4,JRTFF77-YVP80M4,JRTFF77-YVP90M4,JRTFF77-YVPEJ100M4,JRTFF77-YVPEJ112M4,JRTFF77-YVPEJ132M4,JRTFF77-YVPEJ160M4,JRTFF77-YVPEJ63M4,JRTFF77-YVPEJ71M4,JRTFF77-YVPEJ80M4,JRTFF77-YVPEJ90M4,EWFF77-Y0.18KW,EWFF77-Y0.25KW,EWFF77-Y0.37KW,EWFF77-Y0.55KW,EWFF77-Y0.75KW,EWFF77-Y1.1KW,EWFF77-Y1.5KW,EWFF77-Y100M4,EWFF77-Y112M4,EWFF77-Y11KW,EWFF77-Y132M4,EWFF77-Y160M4,EWFF77-Y2.2KW,EWFF77-Y3KW,EWFF77-Y4KW,EWFF77-Y5.5KW,EWFF77-Y63M4,EWFF77-Y7.5KW,EWFF77-Y71M4,EWFF77-Y80M4,EWFF77-Y90M4,EWFF77-YEJ100M4,EWFF77-YEJ112M4,EWFF77-YEJ132M4,EWFF77-YEJ160M4,EWFF77-YEJ63M4,EWFF77-YEJ71M4,EWFF77-YEJ80M4,EWFF77-YEJ90M4,EWFF77-YS100M4,EWFF77-YS112M4,EWFF77-YS132M4,EWFF77-YS160M4,EWFF77-YS63M4,EWFF77-YS71M4,EWFF77-YS80M4,EWFF77-YS90M4,EWFF77-YVP100M4,EWFF77-YVP112M4,EWFF77-YVP132M4,EWFF77-YVP160M4,EWFF77-YVP63M4,EWFF77-YVP71M4,EWFF77-YVP80M4,EWFF77-YVP90M4,EWFF77-YVPEJ100M4,EWFF77-YVPEJ112M4,EWFF77-YVPEJ132M4,EWFF77-YVPEJ160M4,EWFF77-YVPEJ63M4,EWFF77-YVPEJ71M4,EWFF77-YVPEJ80M4,EWFF77-YVPEJ90M4,SLFF77-Y0.18KW,SLFF77-Y0.25KW,SLFF77-Y0.37KW,SLFF77-Y0.55KW,SLFF77-Y0.75KW,SLFF77-Y1.1KW,SLFF77-Y1.5KW,SLFF77-Y100M4,SLFF77-Y112M4,SLFF77-Y11KW,SLFF77-Y132M4,SLFF77-Y160M4,SLFF77-Y2.2KW,SLFF77-Y3KW,SLFF77-Y4KW,SLFF77-Y5.5KW,SLFF77-Y63M4,SLFF77-Y7.5KW,SLFF77-Y71M4,SLFF77-Y80M4,SLFF77-Y90M4,SLFF77-YEJ100M4,SLFF77-YEJ112M4,SLFF77-YEJ132M4,SLFF77-YEJ160M4,SLFF77-YEJ63M4,SLFF77-YEJ71M4,SLFF77-YEJ80M4,SLFF77-YEJ90M4,SLFF77-YS100M4,SLFF77-YS112M4,SLFF77-YS132M4,SLFF77-YS160M4,SLFF77-YS63M4,SLFF77-YS71M4,SLFF77-YS80M4,SLFF77-YS90M4,SLFF77-YVP100M4,SLFF77-YVP112M4,SLFF77-YVP132M4,SLFF77-YVP160M4,SLFF77-YVP63M4,SLFF77-YVP71M4,SLFF77-YVP80M4,SLFF77-YVP90M4,SLFF77-YVPEJ100M4,SLFF77-YVPEJ112M4,SLFF77-YVPEJ132M4,SLFF77-YVPEJ160M4,SLFF77-YVPEJ63M4,SLFF77-YVPEJ71M4,SLFF77-YVPEJ80M4,SLFF77-YVPEJ90M4,DSZFF77-Y0.18KW,DSZFF77-Y0.25KW,DSZFF77-Y0.37KW,DSZFF77-Y0.55KW,DSZFF77-Y0.75KW,DSZFF77-Y1.1KW,DSZFF77-Y1.5KW,DSZFF77-Y100M4,DSZFF77-Y112M4,DSZFF77-Y11KW,DSZFF77-Y132M4,DSZFF77-Y160M4,DSZFF77-Y2.2KW,DSZFF77-Y3KW,DSZFF77-Y4KW,DSZFF77-Y5.5KW,DSZFF77-Y63M4,DSZFF77-Y7.5KW,DSZFF77-Y71M4,DSZFF77-Y80M4,DSZFF77-Y90M4,DSZFF77-YEJ100M4,DSZFF77-YEJ112M4,DSZFF77-YEJ132M4,DSZFF77-YEJ160M4,DSZFF77-YEJ63M4,DSZFF77-YEJ71M4,DSZFF77-YEJ80M4,DSZFF77-YEJ90M4,DSZFF77-YS100M4,DSZFF77-YS112M4,DSZFF77-YS132M4,DSZFF77-YS160M4,DSZFF77-YS63M4,DSZFF77-YS71M4,DSZFF77-YS80M4,DSZFF77-YS90M4,DSZFF77-YVP100M4,DSZFF77-YVP112M4,DSZFF77-YVP132M4,DSZFF77-YVP160M4,DSZFF77-YVP63M4,DSZFF77-YVP71M4,DSZFF77-YVP80M4,DSZFF77-YVP90M4,DSZFF77-YVPEJ100M4,DSZFF77-YVPEJ112M4,DSZFF77-YVPEJ132M4,DSZFF77-YVPEJ160M4,DSZFF77-YVPEJ63M4,DSZFF77-YVPEJ71M4,DSZFF77-YVPEJ80M4,DSZFF77-YVPEJ90M4,BFF77-Y0.18KW,BFF77-Y0.25KW,BFF77-Y0.37KW,BFF77-Y0.55KW,BFF77-Y0.75KW,BFF77-Y1.1KW,BFF77-Y1.5KW,BFF77-Y100M4,BFF77-Y112M4,BFF77-Y11KW,BFF77-Y132M4,BFF77-Y160M4,BFF77-Y2.2KW,BFF77-Y3KW,BFF77-Y4KW,BFF77-Y5.5KW,BFF77-Y63M4,BFF77-Y7.5KW,BFF77-Y71M4,BFF77-Y80M4,BFF77-Y90M4,BFF77-YEJ100M4,BFF77-YEJ112M4,BFF77-YEJ132M4,BFF77-YEJ160M4,BFF77-YEJ63M4,BFF77-YEJ71M4,BFF77-YEJ80M4,BFF77-YEJ90M4,BFF77-YS100M4,BFF77-YS112M4,BFF77-YS132M4,BFF77-YS160M4,BFF77-YS63M4,BFF77-YS71M4,BFF77-YS80M4,BFF77-YS90M4,BFF77-YVP100M4,BFF77-YVP112M4,BFF77-YVP132M4,BFF77-YVP160M4,BFF77-YVP63M4,BFF77-YVP71M4,BFF77-YVP80M4,BFF77-YVP90M4,BFF77-YVPEJ100M4,BFF77-YVPEJ112M4,BFF77-YVPEJ132M4,BFF77-YVPEJ160M4,BFF77-YVPEJ63M4,BFF77-YVPEJ71M4,BFF77-YVPEJ80M4,BFF77-YVPEJ90M4,GFF77-Y0.18KW,GFF77-Y0.25KW,GFF77-Y0.37KW,GFF77-Y0.55KW,GFF77-Y0.75KW,GFF77-Y1.1KW,GFF77-Y1.5KW,GFF77-Y100M4,GFF77-Y112M4,GFF77-Y11KW,GFF77-Y132M4,GFF77-Y160M4,GFF77-Y2.2KW,GFF77-Y3KW,GFF77-Y4KW,GFF77-Y5.5KW,GFF77-Y63M4,GFF77-Y7.5KW,GFF77-Y71M4,GFF77-Y80M4,GFF77-Y90M4,GFF77-YEJ100M4,GFF77-YEJ112M4,GFF77-YEJ132M4,GFF77-YEJ160M4,GFF77-YEJ63M4,GFF77-YEJ71M4,GFF77-YEJ80M4,GFF77-YEJ90M4,GFF77-YS100M4,GFF77-YS112M4,GFF77-YS132M4,GFF77-YS160M4,GFF77-YS63M4,GFF77-YS71M4,GFF77-YS80M4,GFF77-YS90M4,GFF77-YVP100M4,GFF77-YVP112M4,GFF77-YVP132M4,GFF77-YVP160M4,GFF77-YVP63M4,GFF77-YVP71M4,GFF77-YVP80M4,GFF77-YVP90M4,GFF77-YVPEJ100M4,GFF77-YVPEJ112M4,GFF77-YVPEJ132M4,GFF77-YVPEJ160M4,GFF77-YVPEJ63M4,GFF77-YVPEJ71M4,GFF77-YVPEJ80M4,GFF77-YVPEJ90M4,FCF77-Y0.18KW,FCF77-Y0.25KW,FCF77-Y0.37KW,FCF77-Y0.55KW,FCF77-Y0.75KW,FCF77-Y1.1KW,FCF77-Y1.5KW,FCF77-Y100M4,FCF77-Y112M4,FCF77-Y11KW,FCF77-Y132M4,FCF77-Y160M4,FCF77-Y2.2KW,FCF77-Y3KW,FCF77-Y4KW,FCF77-Y5.5KW,FCF77-Y63M4,FCF77-Y7.5KW,FCF77-Y71M4,FCF77-Y80M4,FCF77-Y90M4,FCF77-YEJ100M4,FCF77-YEJ112M4,FCF77-YEJ132M4,FCF77-YEJ160M4,FCF77-YEJ63M4,FCF77-YEJ71M4,FCF77-YEJ80M4,FCF77-YEJ90M4,FCF77-YS100M4,FCF77-YS112M4,FCF77-YS132M4,FCF77-YS160M4,FCF77-YS63M4,FCF77-YS71M4,FCF77-YS80M4,FCF77-YS90M4,FCF77-YVP100M4,FCF77-YVP112M4,FCF77-YVP132M4,FCF77-YVP160M4,FCF77-YVP63M4,FCF77-YVP71M4,FCF77-YVP80M4,FCF77-YVP90M4,FCF77-YVPEJ100M4,FCF77-YVPEJ112M4,FCF77-YVPEJ132M4,FCF77-YVPEJ160M4,FCF77-YVPEJ63M4,FCF77-YVPEJ71M4,FCF77-YVPEJ80M4,FCF77-YVPEJ90M4,MTPF77-Y0.18KW,MTPF77-Y0.25KW,MTPF77-Y0.37KW,MTPF77-Y0.55KW,MTPF77-Y0.75KW,MTPF77-Y1.1KW,MTPF77-Y1.5KW,MTPF77-Y100M4,MTPF77-Y112M4,MTPF77-Y11KW,MTPF77-Y132M4,MTPF77-Y160M4,MTPF77-Y2.2KW,MTPF77-Y3KW,MTPF77-Y4KW,MTPF77-Y5.5KW,MTPF77-Y63M4,MTPF77-Y7.5KW,MTPF77-Y71M4,MTPF77-Y80M4,MTPF77-Y90M4,MTPF77-YEJ100M4,MTPF77-YEJ112M4,MTPF77-YEJ132M4,MTPF77-YEJ160M4,MTPF77-YEJ63M4,MTPF77-YEJ71M4,MTPF77-YEJ80M4,MTPF77-YEJ90M4,MTPF77-YS100M4,MTPF77-YS112M4,MTPF77-YS132M4,MTPF77-YS160M4,MTPF77-YS63M4,MTPF77-YS71M4,MTPF77-YS80M4,MTPF77-YS90M4,MTPF77-YVP100M4,MTPF77-YVP112M4,MTPF77-YVP132M4,MTPF77-YVP160M4,MTPF77-YVP63M4,MTPF77-YVP71M4,MTPF77-YVP80M4,MTPF77-YVP90M4,MTPF77-YVPEJ100M4,MTPF77-YVPEJ112M4,MTPF77-YVPEJ132M4,MTPF77-YVPEJ160M4,MTPF77-YVPEJ63M4,MTPF77-YVPEJ71M4,MTPF77-YVPEJ80M4,MTPF77-YVPEJ90M4,WXFF77-WSS0.18KW,WXFF77-WSS0.25KW,WXFF77-WSS0.37KW,WXFF77-WSS0.55KW,WXFF77-WSS0.75KW,WXFF77-WSS1.1KW,WXFF77-WSS1.5KW,WXFF77-WSS100M4,WXFF77-WSS112M4,WXFF77-WSS11KW,WXFF77-WSS132M4,WXFF77-WSS160M4,WXFF77-WSS2.2KW,WXFF77-WSS3KW,WXFF77-WSS4KW,WXFF77-WSS5.5KW,WXFF77-WSS63M4,WXFF77-WSS7.5KW,WXFF77-WSS71M4,WXFF77-WSS80M4,WXFF77-WSS90M4,WXFF77-WSSB100M4,WXFF77-WSSB112M4,WXFF77-WSSB132M4,WXFF77-WSSB160M4,WXFF77-WSSB63M4,WXFF77-WSSB71M4,WXFF77-WSSB80M4,WXFF77-WSSB90M4,WXFF77-WSSVP100M4,WXFF77-WSSVP112M4,WXFF77-WSSVP132M4,WXFF77-WSSVP160M4,WXFF77-WSSVP63M4,WXFF77-WSSVP71M4,WXFF77-WSSVP80M4,WXFF77-WSSVP90M4,WXFF77-WSSVPB100M4,WXFF77-WSSVPB112M4,WXFF77-WSSVPB132M4,WXFF77-WSSVPB160M4,WXFF77-WSSVPB63M4,WXFF77-WSSVPB71M4,WXFF77-WSSVPB80M4,WXFF77-WSSVPB90M4。齒輪減速電機

FF77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.sztc800.com/product/list-ffxiliejiansuji-cn.html
