FAF127減速機加電機重量：

FAF127減速機加7.5KW電機重量776KG，F(xiàn)AF127減速機加11KW電機重量818KG，F(xiàn)AF127減速機加15KW電機重量838KG，F(xiàn)AF127減速機加18.5KW電機重量875KG，F(xiàn)AF127減速機加22KW電機重量888KG，F(xiàn)AF127減速機加30KW電機重量956KG，F(xiàn)AF127減速機加37KW電機重量1003KG，F(xiàn)AF127減速機加45KW電機重量1038KG，F(xiàn)AF127減速機加55KW電機重量1123KG，F(xiàn)AF127減速機加75KW電機重量1263KG，F(xiàn)AF127減速機加90KW電機重量1373KG。變頻電機減速機

FAF127減速機加油量：可加齒輪潤滑油

FAF127減速機M4安裝形式加61升，F(xiàn)AF127減速機M3安裝形式加34升，F(xiàn)AF127減速機M2安裝形式加54.5升，F(xiàn)AF127減速機M1安裝形式加39升，F(xiàn)AF127減速機M5安裝形式加45升，F(xiàn)AF127減速機M6安裝形式加46.5升。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時，您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

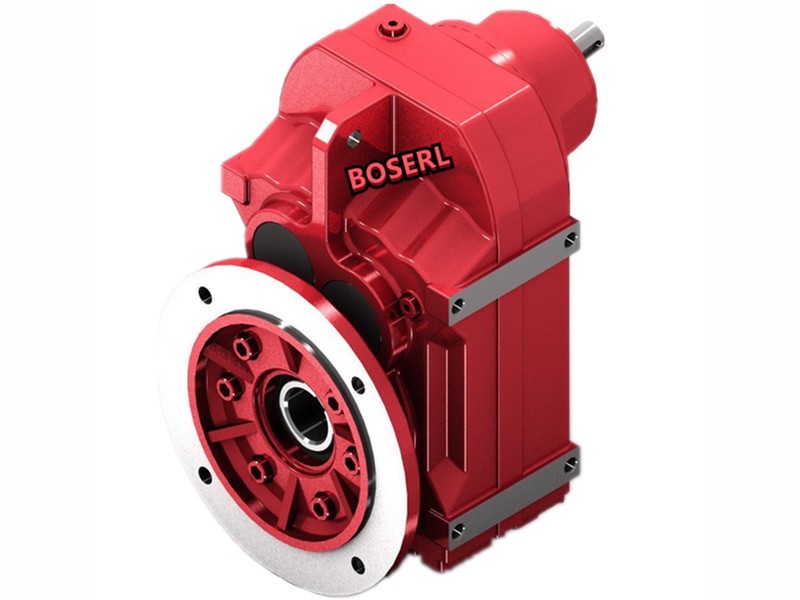

FAF127減速機實物圖：圖一為FAF127立式法蘭孔輸出平行軸斜齒輪減速機，圖二F127底腳安裝形式軸輸出平行軸減速機，圖三為FF127立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FA127臥式孔輸出平行軸斜齒輪減速機。

FAF127減速機型號表示方法：

FAF127減速機型號結構FAF127-B45KW-4P-減速比-安裝形式-接線盒位置。

FAF127減速機性能參數表結構說明：TF電機熱保護裝置，HR手動釋放裝置，HF手動釋放裝置加自鎖功能，F(xiàn)AF127，F(xiàn)127，F(xiàn)F127，F(xiàn)A127減速機機座號，N代表徑向負荷，KW代表電機功率，1，min代表輸出轉數，Nm代表輸出扭矩。

FAF127減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位，其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。齒輪減速機

FAF127減速機參數：

FAF127減速機輸出扭矩12000N.m，11000N.m，10000N.m，9500N.m，8500N.m，7000N.m，6000N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FAF127減速機減速比1:170，1:153，1:125，1:114，1:98，1:87，1:75，1:70，1:63，1:55，1:48，1:42，1:37，1:31，1:25，1:26，1:24，1:21，1:18，1:16，1:14，1:12，1:10，1:8，1:7，1:6，1:5，1:4

FAF127減速機輸出轉數8.2轉，9.1轉，11轉，12轉，14轉，16轉，19轉，20轉，22轉，25轉，29轉，33轉，38轉，45轉，55轉，52轉，57轉，65轉，74轉，86轉，96轉，112轉，137轉，158轉，178轉，206轉，254轉，299轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FAF127減速機電機可加直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FAF127加7.5KW，F(xiàn)AF127加11KW，F(xiàn)AF127加15KW，F(xiàn)AF127加18.5KW，F(xiàn)AF127加22KW，F(xiàn)AF127加30KW，F(xiàn)AF127加37KW，F(xiàn)AF127加45KW，F(xiàn)AF127加55KW，F(xiàn)AF127加75KW，F(xiàn)AF127加90KW。

FAF127減速機外觀尺寸：輸出孔直徑Φ100+鍵6.4（可定做），高856*寬530*長429（帶法蘭）

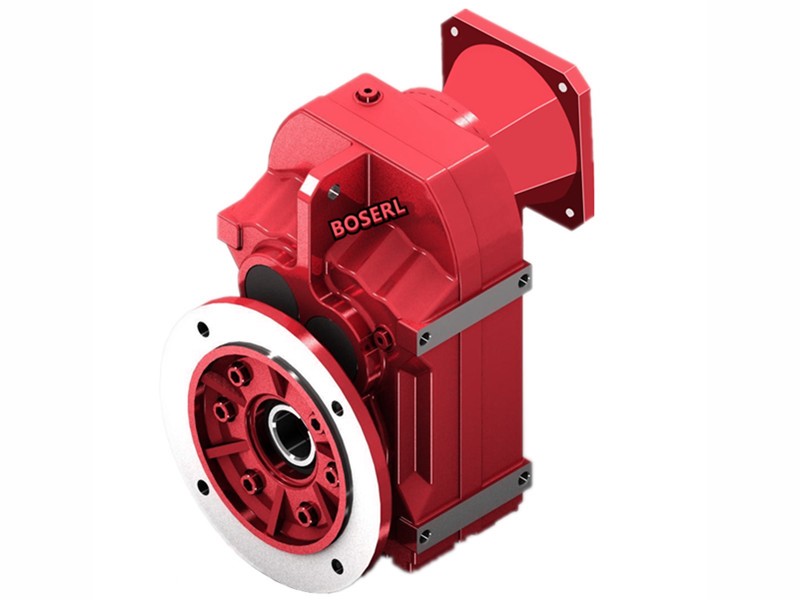

FAF127減速機型號：FAF127AQA80,FAF127AQA100,FAF127AQA115,FAF127AQA140,FAF127AQA160,FAF127AQA190,FAF127AQH80,FAF127AQH100,FAF127AQH115,FAF127AQH140,FAF127AQH160,FAF127AQH190,JRTFAF127-Y11KW,JRTFAF127-Y132M4,JRTFAF127-Y15KW,JRTFAF127-Y160M4,JRTFAF127-Y18.5KW,JRTFAF127-Y180M4,JRTFAF127-Y200M4,JRTFAF127-Y225M4,JRTFAF127-Y22KW,JRTFAF127-Y250M4,JRTFAF127-Y280M4,JRTFAF127-Y30KW,JRTFAF127-Y37KW,JRTFAF127-Y45KW,JRTFAF127-Y55KW,JRTFAF127-Y7.5KW,JRTFAF127-Y75KW,JRTFAF127-Y90KW,JRTFAF127-YEJ132M4,JRTFAF127-YEJ160M4,JRTFAF127-YEJ180M4,JRTFAF127-YEJ200M4,JRTFAF127-YEJ225M4,JRTFAF127-YEJ250M4,JRTFAF127-YEJ280M4,JRTFAF127-YS132M4,JRTFAF127-YS160M4,JRTFAF127-YS180M4,JRTFAF127-YS200M4,JRTFAF127-YS225M4,JRTFAF127-YS250M4,JRTFAF127-YS280M4,JRTFAF127-YVP132M4,JRTFAF127-YVP160M4,JRTFAF127-YVP180M4,JRTFAF127-YVP200M4,JRTFAF127-YVP225M4,JRTFAF127-YVP250M4,JRTFAF127-YVP280M4,JRTFAF127-YVPEJ132M4,JRTFAF127-YVPEJ160M4,JRTFAF127-YVPEJ180M4,JRTFAF127-YVPEJ200M4,JRTFAF127-YVPEJ225M4,JRTFAF127-YVPEJ250M4,JRTFAF127-YVPEJ280M4,EWFAF127-Y11KW,EWFAF127-Y132M4,EWFAF127-Y15KW,EWFAF127-Y160M4,EWFAF127-Y18.5KW,EWFAF127-Y180M4,EWFAF127-Y200M4,EWFAF127-Y225M4,EWFAF127-Y22KW,EWFAF127-Y250M4,EWFAF127-Y280M4,EWFAF127-Y30KW,EWFAF127-Y37KW,EWFAF127-Y45KW,EWFAF127-Y55KW,EWFAF127-Y7.5KW,EWFAF127-Y75KW,EWFAF127-Y90KW,EWFAF127-YEJ132M4,EWFAF127-YEJ160M4,EWFAF127-YEJ180M4,EWFAF127-YEJ200M4,EWFAF127-YEJ225M4,EWFAF127-YEJ250M4,EWFAF127-YEJ280M4,EWFAF127-YS132M4,EWFAF127-YS160M4,EWFAF127-YS180M4,EWFAF127-YS200M4,EWFAF127-YS225M4,EWFAF127-YS250M4,EWFAF127-YS280M4,EWFAF127-YVP132M4,EWFAF127-YVP160M4,EWFAF127-YVP180M4,EWFAF127-YVP200M4,EWFAF127-YVP225M4,EWFAF127-YVP250M4,EWFAF127-YVP280M4,EWFAF127-YVPEJ132M4,EWFAF127-YVPEJ160M4,EWFAF127-YVPEJ180M4,EWFAF127-YVPEJ200M4,EWFAF127-YVPEJ225M4,EWFAF127-YVPEJ250M4,EWFAF127-YVPEJ280M4,SLFAF127-Y11KW,SLFAF127-Y132M4,SLFAF127-Y15KW,SLFAF127-Y160M4,SLFAF127-Y18.5KW,SLFAF127-Y180M4,SLFAF127-Y200M4,SLFAF127-Y225M4,SLFAF127-Y22KW,SLFAF127-Y250M4,SLFAF127-Y280M4,SLFAF127-Y30KW,SLFAF127-Y37KW,SLFAF127-Y45KW,SLFAF127-Y55KW,SLFAF127-Y7.5KW,SLFAF127-Y75KW,SLFAF127-Y90KW,SLFAF127-YEJ132M4,SLFAF127-YEJ160M4,SLFAF127-YEJ180M4,SLFAF127-YEJ200M4,SLFAF127-YEJ225M4,SLFAF127-YEJ250M4,SLFAF127-YEJ280M4,SLFAF127-YS132M4,SLFAF127-YS160M4,SLFAF127-YS180M4,SLFAF127-YS200M4,SLFAF127-YS225M4,SLFAF127-YS250M4,SLFAF127-YS280M4,SLFAF127-YVP132M4,SLFAF127-YVP160M4,SLFAF127-YVP180M4,SLFAF127-YVP200M4,SLFAF127-YVP225M4,SLFAF127-YVP250M4,SLFAF127-YVP280M4,SLFAF127-YVPEJ132M4,SLFAF127-YVPEJ160M4,SLFAF127-YVPEJ180M4,SLFAF127-YVPEJ200M4,SLFAF127-YVPEJ225M4,SLFAF127-YVPEJ250M4,SLFAF127-YVPEJ280M4,DSZFAF127-Y11KW,DSZFAF127-Y132M4,DSZFAF127-Y15KW,DSZFAF127-Y160M4,DSZFAF127-Y18.5KW,DSZFAF127-Y180M4,DSZFAF127-Y200M4,DSZFAF127-Y225M4,DSZFAF127-Y22KW,DSZFAF127-Y250M4,DSZFAF127-Y280M4,DSZFAF127-Y30KW,DSZFAF127-Y37KW,DSZFAF127-Y45KW,DSZFAF127-Y55KW,DSZFAF127-Y7.5KW,DSZFAF127-Y75KW,DSZFAF127-Y90KW,DSZFAF127-YEJ132M4,DSZFAF127-YEJ160M4,DSZFAF127-YEJ180M4,DSZFAF127-YEJ200M4,DSZFAF127-YEJ225M4,DSZFAF127-YEJ250M4,DSZFAF127-YEJ280M4,DSZFAF127-YS132M4,DSZFAF127-YS160M4,DSZFAF127-YS180M4,DSZFAF127-YS200M4,DSZFAF127-YS225M4,DSZFAF127-YS250M4,DSZFAF127-YS280M4,DSZFAF127-YVP132M4,DSZFAF127-YVP160M4,DSZFAF127-YVP180M4,DSZFAF127-YVP200M4,DSZFAF127-YVP225M4,DSZFAF127-YVP250M4,DSZFAF127-YVP280M4,DSZFAF127-YVPEJ132M4,DSZFAF127-YVPEJ160M4,DSZFAF127-YVPEJ180M4,DSZFAF127-YVPEJ200M4,DSZFAF127-YVPEJ225M4,DSZFAF127-YVPEJ250M4,DSZFAF127-YVPEJ280M4,BFAF127-Y11KW,BFAF127-Y132M4,BFAF127-Y15KW,BFAF127-Y160M4,BFAF127-Y18.5KW,BFAF127-Y180M4,BFAF127-Y200M4,BFAF127-Y225M4,BFAF127-Y22KW,BFAF127-Y250M4,BFAF127-Y280M4,BFAF127-Y30KW,BFAF127-Y37KW,BFAF127-Y45KW,BFAF127-Y55KW,BFAF127-Y7.5KW,BFAF127-Y75KW,BFAF127-Y90KW,BFAF127-YEJ132M4,BFAF127-YEJ160M4,BFAF127-YEJ180M4,BFAF127-YEJ200M4,BFAF127-YEJ225M4,BFAF127-YEJ250M4,BFAF127-YEJ280M4,BFAF127-YS132M4,BFAF127-YS160M4,BFAF127-YS180M4,BFAF127-YS200M4,BFAF127-YS225M4,BFAF127-YS250M4,BFAF127-YS280M4,BFAF127-YVP132M4,BFAF127-YVP160M4,BFAF127-YVP180M4,BFAF127-YVP200M4,BFAF127-YVP225M4,BFAF127-YVP250M4,BFAF127-YVP280M4,BFAF127-YVPEJ132M4,BFAF127-YVPEJ160M4,BFAF127-YVPEJ180M4,BFAF127-YVPEJ200M4,BFAF127-YVPEJ225M4,BFAF127-YVPEJ250M4,BFAF127-YVPEJ280M4,GFAF127-Y11KW,GFAF127-Y132M4,GFAF127-Y15KW,GFAF127-Y160M4,GFAF127-Y18.5KW,GFAF127-Y180M4,GFAF127-Y200M4,GFAF127-Y225M4,GFAF127-Y22KW,GFAF127-Y250M4,GFAF127-Y280M4,GFAF127-Y30KW,GFAF127-Y37KW,GFAF127-Y45KW,GFAF127-Y55KW,GFAF127-Y7.5KW,GFAF127-Y75KW,GFAF127-Y90KW,GFAF127-YEJ132M4,GFAF127-YEJ160M4,GFAF127-YEJ180M4,GFAF127-YEJ200M4,GFAF127-YEJ225M4,GFAF127-YEJ250M4,GFAF127-YEJ280M4,GFAF127-YS132M4,GFAF127-YS160M4,GFAF127-YS180M4,GFAF127-YS200M4,GFAF127-YS225M4,GFAF127-YS250M4,GFAF127-YS280M4,GFAF127-YVP132M4,GFAF127-YVP160M4,GFAF127-YVP180M4,GFAF127-YVP200M4,GFAF127-YVP225M4,GFAF127-YVP250M4,GFAF127-YVP280M4,GFAF127-YVPEJ132M4,GFAF127-YVPEJ160M4,GFAF127-YVPEJ180M4,GFAF127-YVPEJ200M4,GFAF127-YVPEJ225M4,GFAF127-YVPEJ250M4,GFAF127-YVPEJ280M4,FCAF127-Y11KW,FCAF127-Y132M4,FCAF127-Y15KW,FCAF127-Y160M4,FCAF127-Y18.5KW,FCAF127-Y180M4,FCAF127-Y200M4,FCAF127-Y225M4,FCAF127-Y22KW,FCAF127-Y250M4,FCAF127-Y280M4,FCAF127-Y30KW,FCAF127-Y37KW,FCAF127-Y45KW,FCAF127-Y55KW,FCAF127-Y7.5KW,FCAF127-Y75KW,FCAF127-Y90KW,FCAF127-YEJ132M4,FCAF127-YEJ160M4,FCAF127-YEJ180M4,FCAF127-YEJ200M4,FCAF127-YEJ225M4,FCAF127-YEJ250M4,FCAF127-YEJ280M4,FCAF127-YS132M4,FCAF127-YS160M4,FCAF127-YS180M4,FCAF127-YS200M4,FCAF127-YS225M4,FCAF127-YS250M4,FCAF127-YS280M4,FCAF127-YVP132M4,FCAF127-YVP160M4,FCAF127-YVP180M4,FCAF127-YVP200M4,FCAF127-YVP225M4,FCAF127-YVP250M4,FCAF127-YVP280M4,FCAF127-YVPEJ132M4,FCAF127-YVPEJ160M4,FCAF127-YVPEJ180M4,FCAF127-YVPEJ200M4,FCAF127-YVPEJ225M4,FCAF127-YVPEJ250M4,FCAF127-YVPEJ280M4,MTPAF127-Y11KW,MTPAF127-Y132M4,MTPAF127-Y15KW,MTPAF127-Y160M4,MTPAF127-Y18.5KW,MTPAF127-Y180M4,MTPAF127-Y200M4,MTPAF127-Y225M4,MTPAF127-Y22KW,MTPAF127-Y250M4,MTPAF127-Y280M4,MTPAF127-Y30KW,MTPAF127-Y37KW,MTPAF127-Y45KW,MTPAF127-Y55KW,MTPAF127-Y7.5KW,MTPAF127-Y75KW,MTPAF127-Y90KW,MTPAF127-YEJ132M4,MTPAF127-YEJ160M4,MTPAF127-YEJ180M4,MTPAF127-YEJ200M4,MTPAF127-YEJ225M4,MTPAF127-YEJ250M4,MTPAF127-YEJ280M4,MTPAF127-YS132M4,MTPAF127-YS160M4,MTPAF127-YS180M4,MTPAF127-YS200M4,MTPAF127-YS225M4,MTPAF127-YS250M4,MTPAF127-YS280M4,MTPAF127-YVP132M4,MTPAF127-YVP160M4,MTPAF127-YVP180M4,MTPAF127-YVP200M4,MTPAF127-YVP225M4,MTPAF127-YVP250M4,MTPAF127-YVP280M4,MTPAF127-YVPEJ132M4,MTPAF127-YVPEJ160M4,MTPAF127-YVPEJ180M4,MTPAF127-YVPEJ200M4,MTPAF127-YVPEJ225M4,MTPAF127-YVPEJ250M4,MTPAF127-YVPEJ280M4,WXFAF127-WSS11KW,WXFAF127-WSS132M4,WXFAF127-WSS15KW,WXFAF127-WSS160M4,WXFAF127-WSS18.5KW,WXFAF127-WSS180M4,WXFAF127-WSS200M4,WXFAF127-WSS225M4,WXFAF127-WSS22KW,WXFAF127-WSS250M4,WXFAF127-WSS280M4,WXFAF127-WSS30KW,WXFAF127-WSS37KW,WXFAF127-WSS45KW,WXFAF127-WSS55KW,WXFAF127-WSS7.5KW,WXFAF127-WSS75KW,WXFAF127-WSS90KW,WXFAF127-WSSB132M4,WXFAF127-WSSB160M4,WXFAF127-WSSB180M4,WXFAF127-WSSB200M4,WXFAF127-WSSB225M4,WXFAF127-WSSB250M4,WXFAF127-WSSB280M4,WXFAF127-WSSVP132M4,WXFAF127-WSSVP160M4,WXFAF127-WSSVP180M4,WXFAF127-WSSVP200M4,WXFAF127-WSSVP225M4,WXFAF127-WSSVP250M4,WXFAF127-WSSVP280M4,WXFAF127-WSSVPB132M4,WXFAF127-WSSVPB160M4,WXFAF127-WSSVPB180M4,WXFAF127-WSSVPB200M4,WXFAF127-WSSVPB225M4,WXFAF127-WSSVPB250M4,WXFAF127-WSSVPB280M4。

FAF127減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.sztc800.com/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F127減速機
